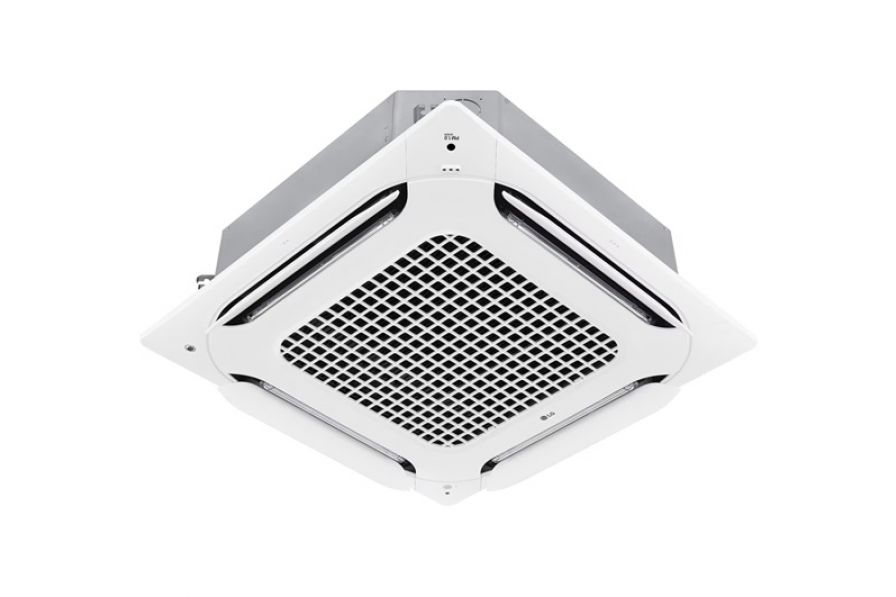

Четирипътна касета LG CT18F.NQ0 / UUB1.U20
€2.048,29 EUR
| COMBINATION | ||||
|---|---|---|---|---|
| Capacity | Cooling | Min./Rated/Max. | kW | 2.0 / 5.0 / 5.8 |
| Heating | 2.3 / 5.7 / 6.6 | |||
| Power Input (Set) | Cooling | Min./Rated/Max. | kW | 0.30 / 1.57 / 2.20 |
| Heating | 0.30 / 1.52 / 2.13 | |||
| RunningCurrent | Cooling | Rated | A | 8.0 |
| Heating | 7.90 | |||
| EER / COP | kWh/kWh | 3.19 / 3.74 | ||
| SEER / SCOP | kWh/kWh | 6.4 / 4.3 | ||
| P Design | Cooling @ 35°C | |
kW | 5.0 |
| Heating @ -10°C | 4.10 | |||
| Sensonal Energy Label | Cooling / Heating | A++ / A+ | ||
| Annual Energy Consumption | Cooling / Heating | kWh | 273 / 1,335 | |
| Dehumidification Rate | l/h | 1.89 | ||
| ODU Sound Pressure Level | Cooling / Heating | Rated | dB(A) | 47 / 52 |
| ODU Sound Power Level | Cooling | Rated | dB(A) | 63 |
| Piping Connections | Liquid | Outer Dia | mm (inch) | ø 6.35 (1/4) |
| Gas | Outer Dia | mm (inch) | ø 12.57 (1/2) | |
| Connection Method | - | Flared | ||
| Operation Range (Outdoor) | Cooling | Min. / Max. | °C | - 15 / 50 |
| Heating | - 20 / 18 | |||
| INDOOR | CT18F.NQ0 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Power Input | Min. / Nom. / Max. | W | 30 / 26 / 22 | |
| Air Flow Rate | H / M / L | m3/min | 13.12.2011 | |
| Dimensions | Body | W x H x D | mm | 570 x 256 x 570 |
| Weight | Body | kg | 13.9 | |
| Sound Pressure Level | Cooling | H / M / L | dB(A) | 41 / 39/ 37 |
| Sound Power Level | Cooling | Max. | dB(A) | 57 |
| Piping Connections | Drain | O.D / I.D | mm | ø 32.0 / 25.0 |
| Panel | Model | PT-QAGW0 | ||
| OUTDOOR | UUB1.U20 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Circuit Breaker | Min. | A | 20 | |
| Power Supply Cable (included Eart) | No. x mm2 | 3C x 2.5 | ||
| Dimensions | Net | W x H x D | mm | 870 x 650 x 330 |
| Weight | Net | kg | 44.5 | |
| Compressor | Type | - | Twin Rotary | |
| Refrigerant | Type | R32 | ||
| Fan | Air flow Rate | Rated | m3/min x No | 50x1 |
| Total Piping Length | Min. / Max. | m | 5 / 30 | |
| Piping Elevation | IDU-ODU | Max. | m | 30 |
Документи
Installation Manual Outdoor
Installation Manual Indoor
Owner's Manual
DOC UUB1
Labels UUB1 + all indoor unit
DOC CT18F
Ръководство за потребителя
