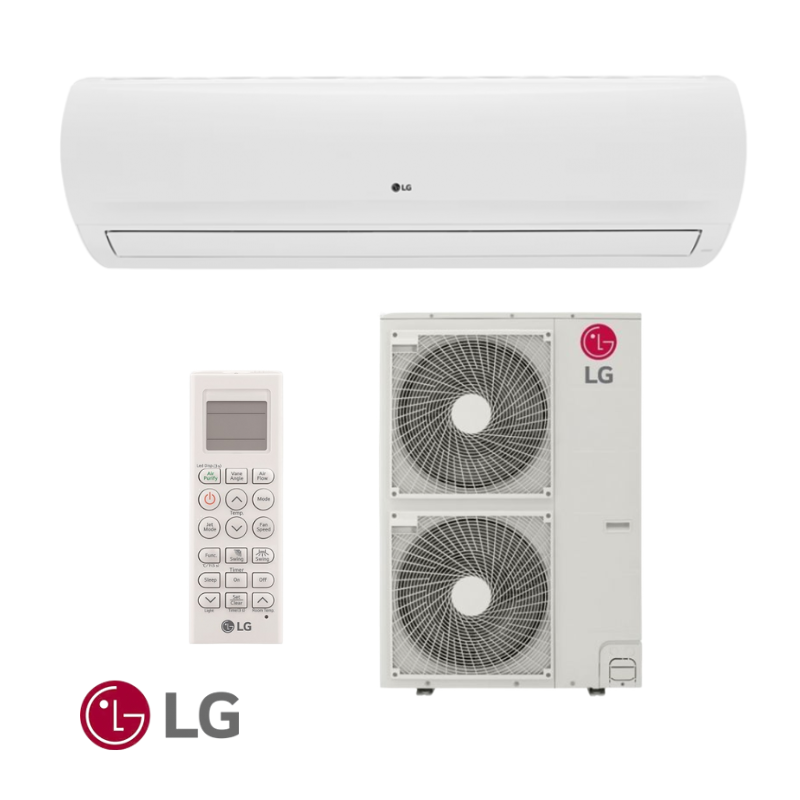

Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30

Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30

€3.630,80 EUR
Прескочи към информацията за продукта
Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30
  • Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30
  • Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30
  • Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30
  • Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30
Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30
LG
Професионални климатици

Тяло за стенен монтаж LG US36F.NR0 / UUD3.U30

В наличност
€3.630,80

Цени с включено ДДС
Безплатна доставка
Фреон
Гаранция
3 години
ИНФОРМАЦИЯ

Капацитет отопление : 10.8 kW.

Капацитет охлаждане : 9.5 kW.

Производителност при -10°С : 8.7 kW.

Монофазно (1Ф) вътрешно тяло
Трифазно (3Ф) външно тяло

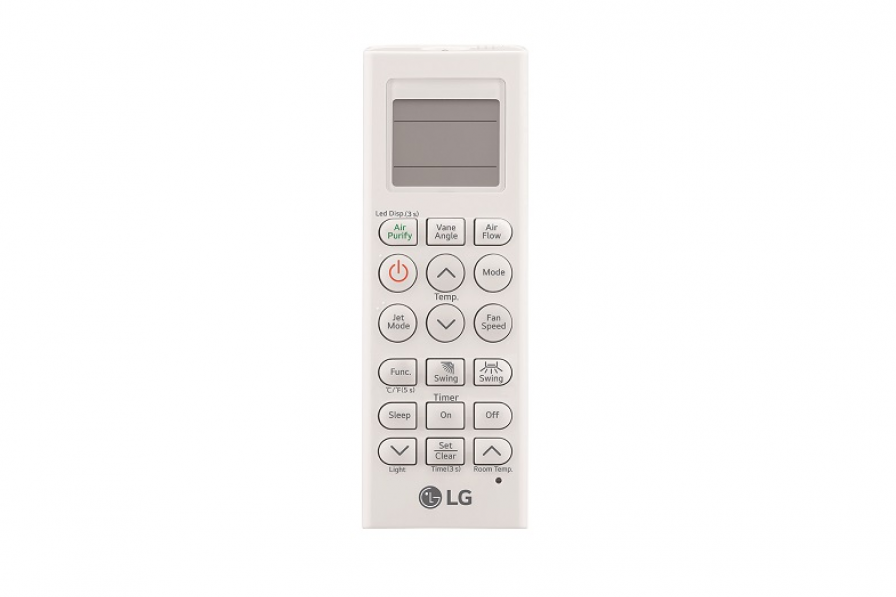

ВАЖНО! В комплекта има включено безжично дистанционно управление.
Безплатна доставка
COMBINATION
Capacity Cooling Min./Rated/Max. kW 3.8 / 9.5 / 12.5
Heating 4.3 / 10.8 / 13.4
Power Input (Set) Cooling Min./Rated/Max. kW 0.30 / 2.57 /3.91
Heating 0.50 / 2.77 / 3.77
RunningCurrent Cooling Rated A 11.4
Heating 12.2
EER / COP kWh/kWh 3.70 / 3.90
SEER / SCOP kWh/kWh 6.10 / 3.85
P Design Cooling @ 35°C
kW 9.5
Heating @ -10°C 8.7
Sensonal Energy Label Cooling / Heating A++ / A
Annual Energy Consumption Cooling / Heating kWh 545 / 3,164
Dehumidification Rate l/h 3.8
ODU Sound Pressure Level Cooling / Heating Rated dB(A) 50 / 50
ODU Sound Power Level Cooling Rated dB(A) 66
Piping Connections Liquid Outer Dia mm (inch) ø 9.52 (3/8)
Gas Outer Dia mm (inch) ø 15.88 (5/8)
Connection Method - Flare
Operation Range (Outdoor) Cooling Min. / Max. °C - 20 / 50
Heating - 25 / 18

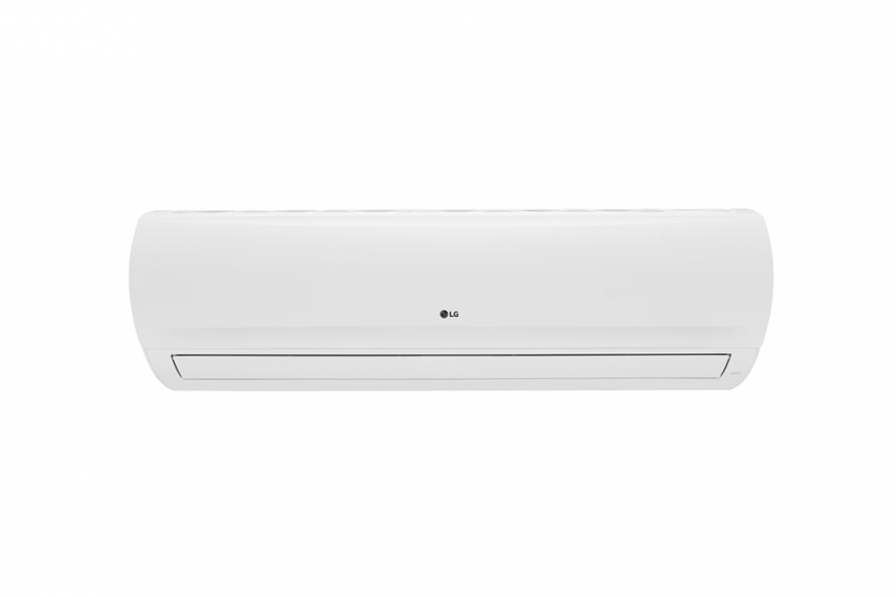

INDOOR US36F.NR0
Power Supply ø / V / Hz 1 / 220-240 / 50
Power Input Min. / Nom. / Max. W 65 / 47 / 42
Air Flow Rate H / M / L m3/min 21 / 21 / 17
Dimensions Body W x H x D mm 1,200 x 360 x 265
Weight Body kg 18.3
Sound Pressure Level Cooling H / M / L dB(A) 51.0 / 46.0 / 42.0
Sound Power Level Cooling Max. dB(A) 65
Piping Connections Drain O.D / I.D mm ø 21.5 / 16.0

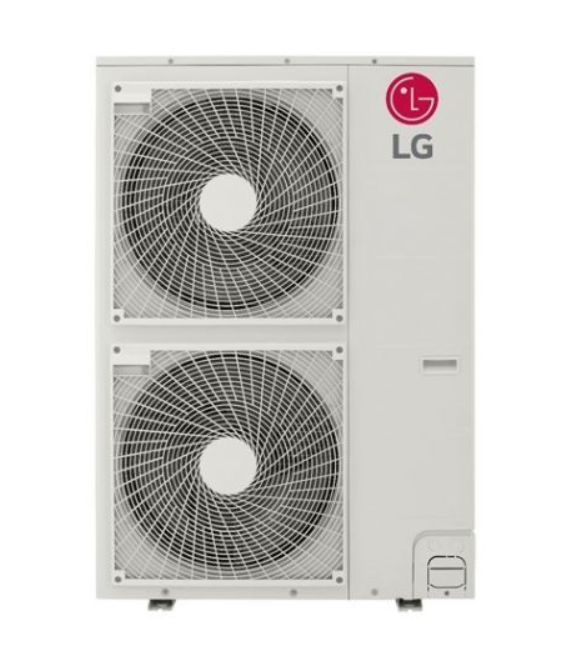

OUTDOOR UUD3.U30
Power Supply ø / V / Hz 3 / 380-415 / 50
Circuit Breaker Min. A 20
Power Supply Cable (included Eart) No. x mm2 5C x 2.5
Dimensions Net W x H x D mm 950 x 1,380 x 330
Weight Net kg 85
Compressor Type - Inverter Scroll
Refrigerant Type R32
Fan Air flow Rate Rated m3/min x No 55x2
Total Piping Length Min. / Max. m 5 / 85
Piping Elevation IDU-ODU Max. m 30

COMBINATION
Capacity Cooling Min./Rated/Max. kW 3.8 / 9.5 / 12.5
Heating 4.3 / 10.8 / 13.4
Power Input (Set) Cooling Min./Rated/Max. kW 0.30 / 2.57 /3.91
Heating 0.50 / 2.77 / 3.77
RunningCurrent Cooling Rated A 11.4
Heating 12.2
EER / COP kWh/kWh 3.70 / 3.90
SEER / SCOP kWh/kWh 6.10 / 3.85
P Design Cooling @ 35°C
kW 9.5
Heating @ -10°C 8.7
Sensonal Energy Label Cooling / Heating A++ / A
Annual Energy Consumption Cooling / Heating kWh 545 / 3,164
Dehumidification Rate l/h 3.8
ODU Sound Pressure Level Cooling / Heating Rated dB(A) 50 / 50
ODU Sound Power Level Cooling Rated dB(A) 66
Piping Connections Liquid Outer Dia mm (inch) ø 9.52 (3/8)
Gas Outer Dia mm (inch) ø 15.88 (5/8)
Connection Method - Flare
Operation Range (Outdoor) Cooling Min. / Max. °C - 20 / 50
Heating - 25 / 18
INDOOR US36F.NR0
Power Supply ø / V / Hz 1 / 220-240 / 50
Power Input Min. / Nom. / Max. W 65 / 47 / 42
Air Flow Rate H / M / L m3/min 21 / 21 / 17
Dimensions Body W x H x D mm 1,200 x 360 x 265
Weight Body kg 18.3
Sound Pressure Level Cooling H / M / L dB(A) 51.0 / 46.0 / 42.0
Sound Power Level Cooling Max. dB(A) 65
Piping Connections Drain O.D / I.D mm ø 21.5 / 16.0
OUTDOOR UUD3.U30
Power Supply ø / V / Hz 3 / 380-415 / 50
Circuit Breaker Min. A 20
Power Supply Cable (included Eart) No. x mm2 5C x 2.5
Dimensions Net W x H x D mm 950 x 1,380 x 330
Weight Net kg 85
Compressor Type - Inverter Scroll
Refrigerant Type R32
Fan Air flow Rate Rated m3/min x No 55x2
Total Piping Length Min. / Max. m 5 / 85
Piping Elevation IDU-ODU Max. m 30
