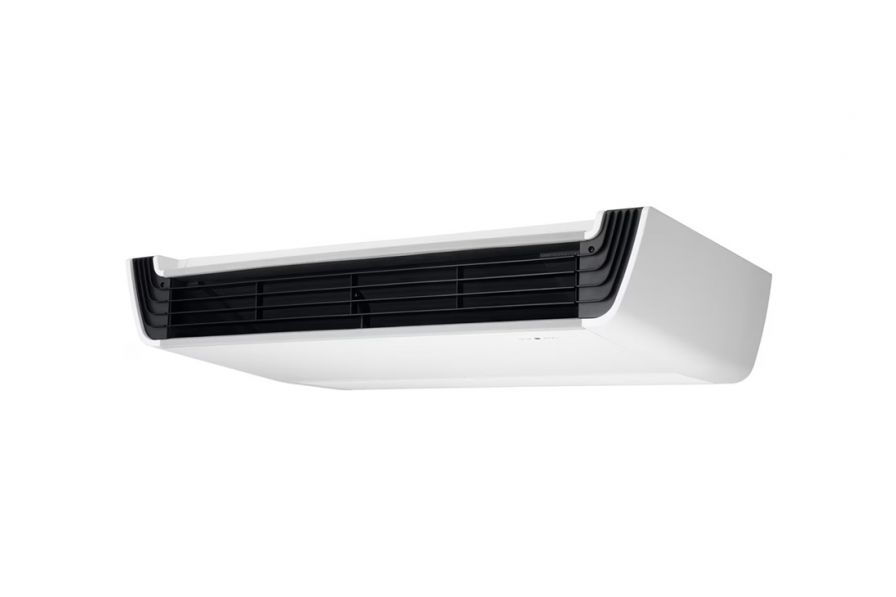

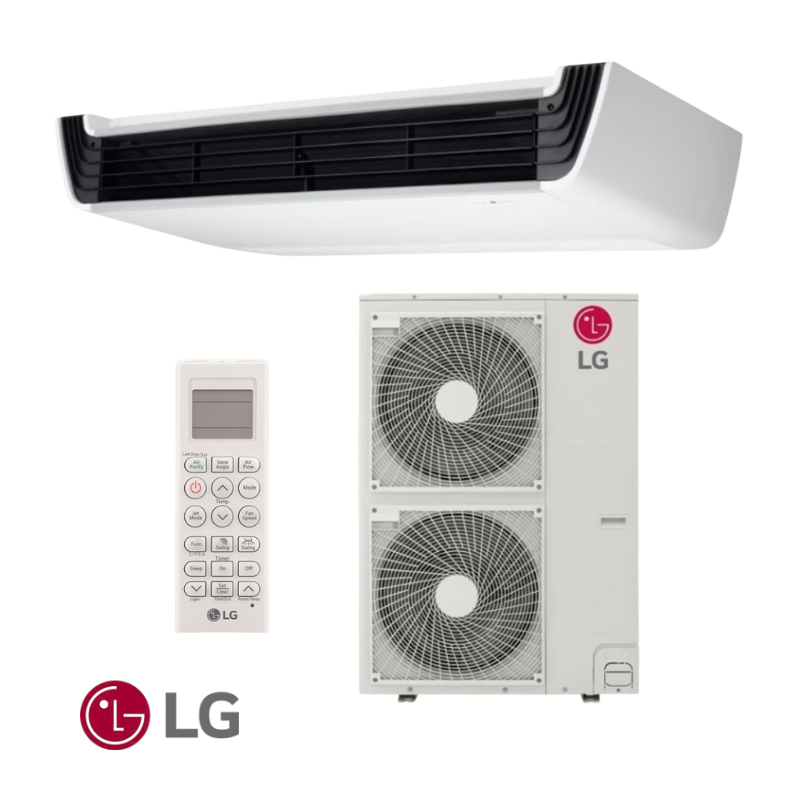

Тяло за открит таванен монтаж LG UV48F.N20 / UUD1.U30
€3.666,08 EUR
| COMBINATION | ||||
|---|---|---|---|---|
| Capacity | Cooling | Min. / Rated / Max. | kW | 5.4 / 13.4 / 15.7 |
| Heating | 6.2 / 15.5 / 17.5 | |||
| Power Input (Set) | Cooling | Min. / Rated / Max. | kW | 0.90 / 4.50 / 5.85 |
| Heating | 0.90 / 4.77 / 5.82 | |||
| Running Current | Cooling | Rated | A | 19.7 |
| Heating | 20.6 | |||
| EER / COP | kWh / kWh | 2.98 / 3.25 | ||
| SEER / SCOP | kWh / kWh | 5.9 / 4.1 | ||
| Pdesign | Cooling @ 35°C | |
kW | 13.апр |
| Heating @ -10°C | 9.5 | |||
| Seasonal Energy Label | Cooling / Heating | - | - / - | |
| Annual Energy Consumption | Cooling / Heating | kWh | 1,363 / 3,244 | |
| Dehumidification Rate | l/h | 6.3 | ||
| ODU Sound Pressure Level | Cooling / Heating | Rated | dB(A) | 52 / 53 |
| ODU Sound Power Level | Cooling | Rated | dB(A) | 69 |
| Piping Connections | Liquid | |
mm (inch) | ø 9.52(3/8) |
| Gas | mm (inch) | ø 15.88 (5/8) | ||
| Connections Method | - | Flared | ||
| Operation Range (Outdoor) | Cooling | Min. / Max. | °C | - 20 / 52 |
| Heating | - 25 / 18 | |||
| INDOOR | UV48F.N20 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Power Input (IDU) | H / M / L | W | 59 / 40 / 28 | |
| Air Flow Rate | H / M / L | m3/min | 30 / 25 / 20 | |
| Dimensions | Body | W x H x D | mm | 1,600 / 235 / 690 |
| Weight | Body | kg | 36.7 | |
| Sound Pressure Level | Cooling | H / M / L | dB(A) | 48 / 44 / 40 |
| Sound Power Level | Cooling | Max. | dB(A) | 63 |
| Piping Connections | Drain (Natural Drainage) | O.D / I.D | mm | ø 25.0 / 20.5 |
| Drain (Using Drain Pump) | ø 32.0 / 26.0 | |||

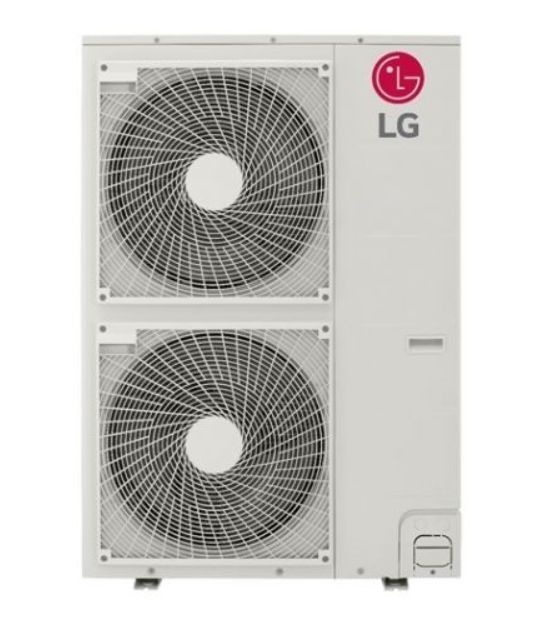

| OUTDOOR | UUD1.U30 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Circuit Breaker | Min. | A | 40 | |
| Power Supply Cable (Included Eart) | No x mm3 | 3C x 6.0 | ||
| Dimensios | Net | W x H x D | mm | 950 / 1,380 / 330 |
| Weight | Net | kg | 85 | |
| Compressor | Type | - | Inverter Scroll | |
| Refrigerant | Type | - | R32 | |
| Fan | Air Flow Rate | Rated | m3/min x No | 55 x 2 |
| Total Piping Lenght | Min. / Max. | m | 5 / 85 | |
| Piping Elevation | IDU - ODU | Max. | m | 30 |
Документи
Installation Manual Outdoor
Installation Manual Indoor
Owner's Manual
DOC UUD1
Labels + all indoor units
DOC UV48F
Ръководство за потребителя
