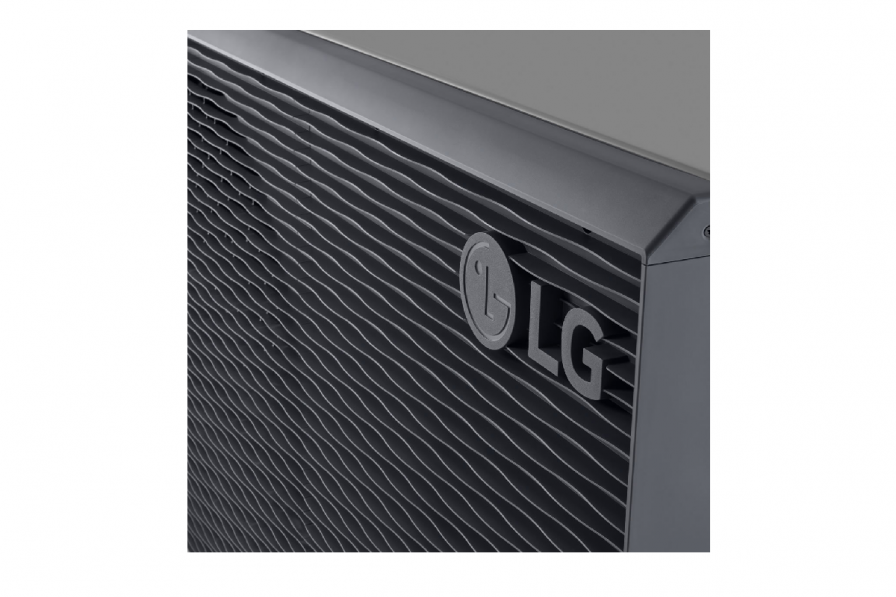

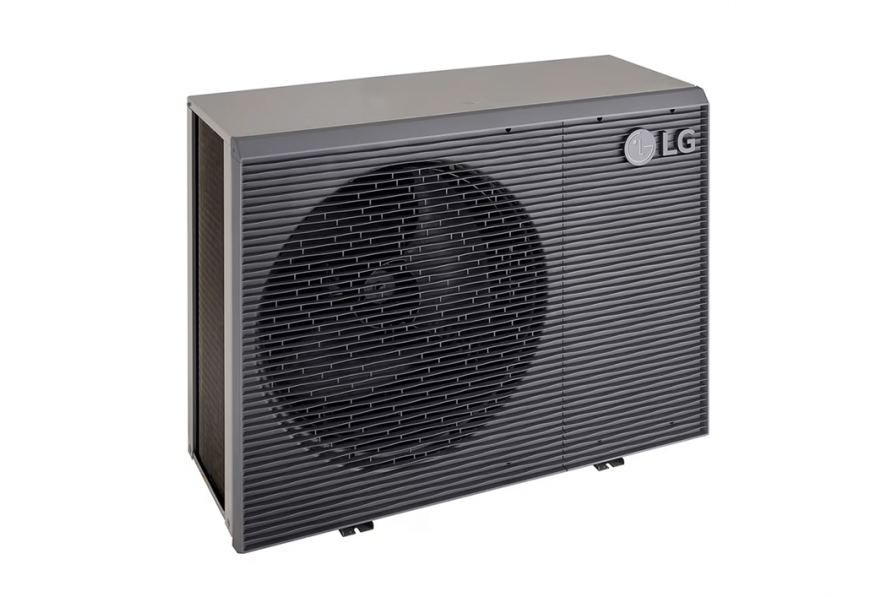

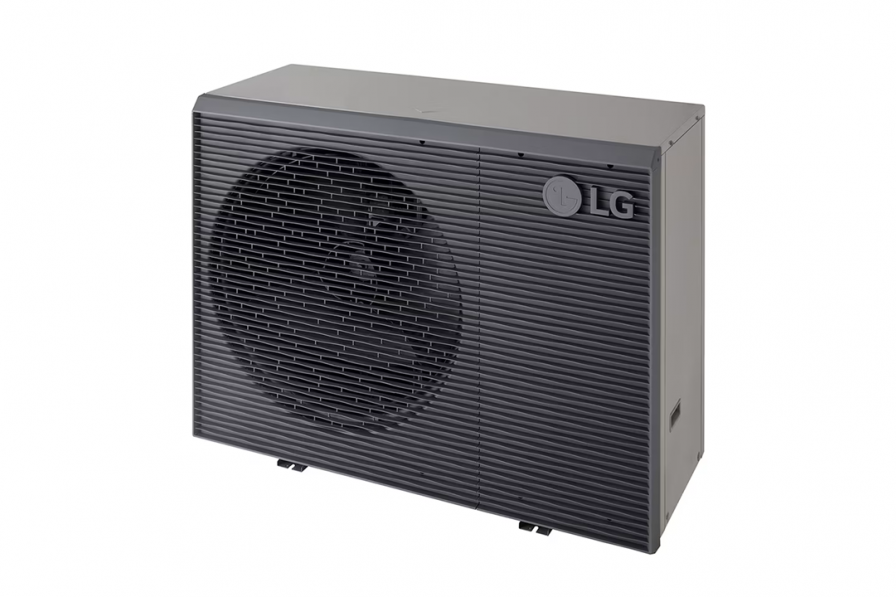

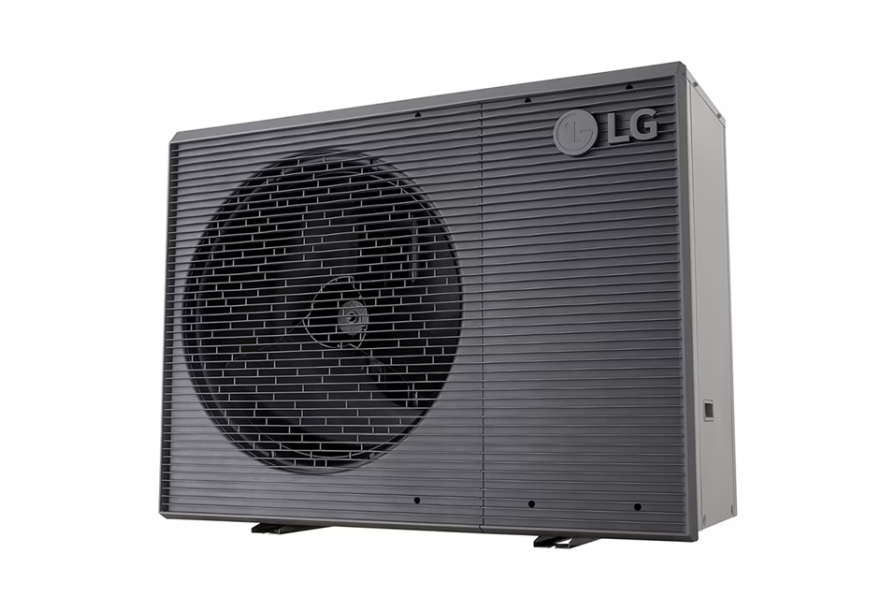

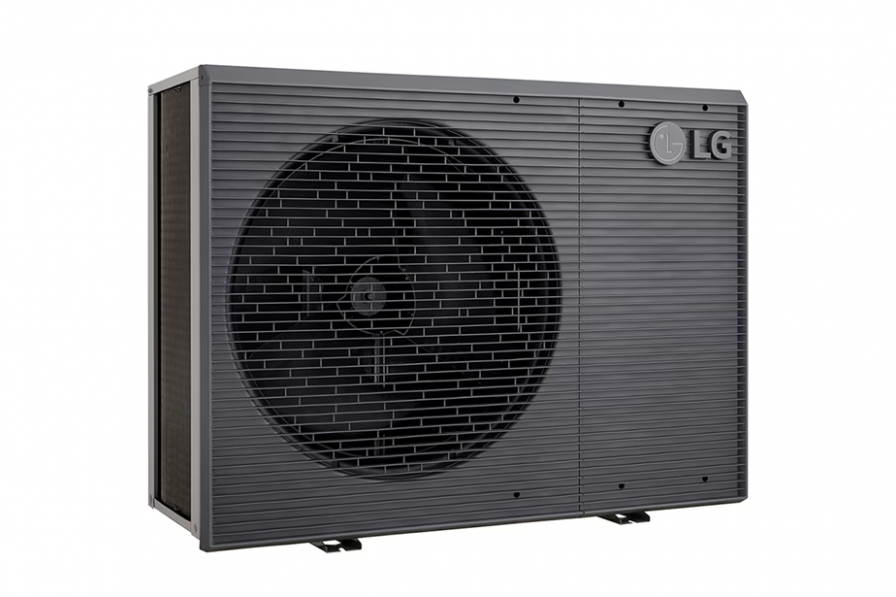

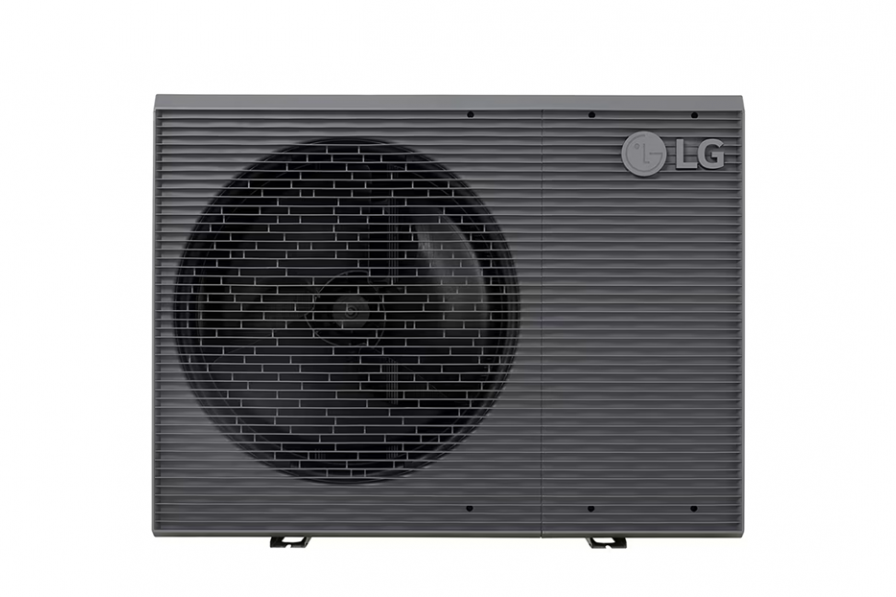

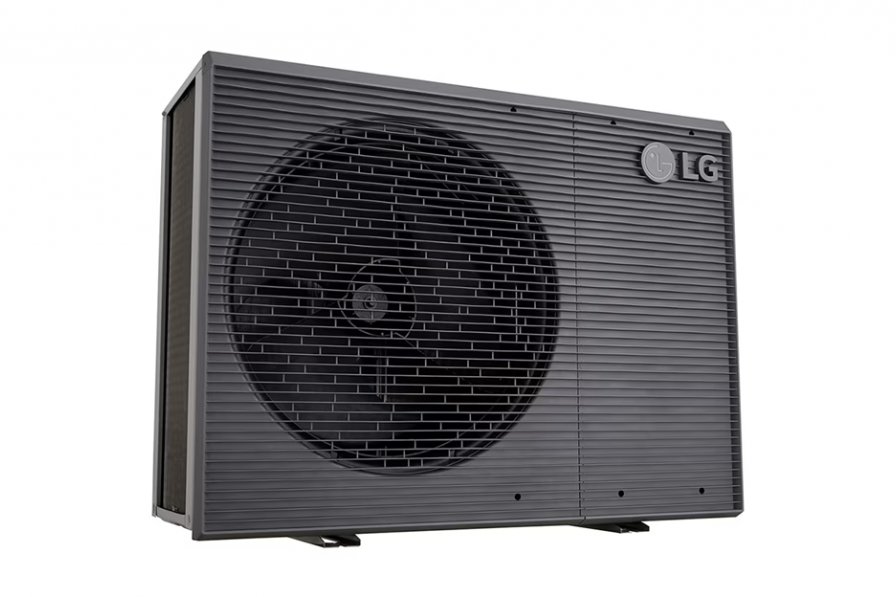

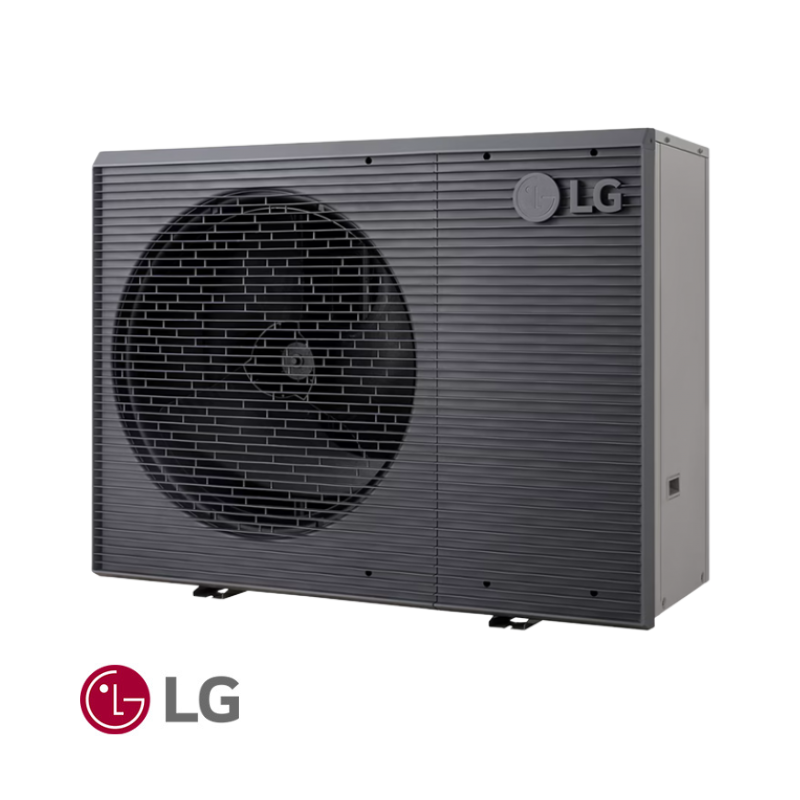

Термопомпа LG Monobloc HM121HFS.UB41
€6.253,20 EUR
| Model | HM121HFS.UB41 | ||
|---|---|---|---|
| Power Supply | Case 1 | V, Φ, Hz | 50 Hz 220-240 V~ |
| Limit Range of Voltage | V | 342 ~ 456 | |
| Capacity(Heating) | Rated | W | 12000 |
| kW | 12 | ||
| A7 / W35 | W | - | |
| kW | 12.00 | ||
| A7 / W55 | kW | 12.00 | |
| A2 / W35 | kW | 12.00 | |
| Capacity(Cooling) | Rated | W | 12000 |
| kW | 12 | ||
| A35 / W18 | kW | 12.00 | |
| A35 / W7 | kW | 10.50 | |
| Power Input(Heating) | Rated | W | 2610 |
| A7 / W35 | W | 2610 | |
| kW | 2.61 | ||
| A7 / W55 | kW | 4.07 | |
| A2 / W35 | kW | 3.87 | |
| Power Input(Cooling) | A35 / W18 | kW | 2.55 |
| A35 / W7 | kW | 3.28 | |
| COP(Heating) | A7 / W35 | W/W | 4.60 |
| A7 / W55 | W/W | 2.95 | |
| A2 / W35 | W/W | 3.10 | |
| EER(Cooling) | A35 / W18 | W/W | 4.70 |
| A35 / W7 | W/W | 3.20 | |
| SCOP(Average climate) | Water outlet 35℃ | W/W | 4.75 |
| Water outlet 55℃ | W/W | 3.65 | |
| Water Flow Rate | Rated(at ΔT 5℃) | ℓ/min | 34.5 |
| Running Current | Heating(Rated) | A | 3.8 |
| Cooling(Rated) | A | 3.7 | |
| Peak Control Running Current | Heating | A | 24 |
| Cooling | A | 18 | |
| Earth Leakage Circuit Breaker | - | A | 32 |
| Current | Current(MAX) | A | 28 |
| Operation range(outdoor temperature) | Cooling(Min ~ Max) | °C(DB) | 5 ~ 48 |
| Heating(Min ~ Max) | °C(DB) | -25 ~ 35 | |
| Operation range(Leaving Water) | Cooling(Min ~ Max) | ℃(DB) | 5 ~ 27 |
| Heating(Min ~ Max) | ℃(DB) | 15 ~ 75 | |
| Domestic Hot water(Min ~ Max) | ℃(DB) | 15 ~ 80 | |
| Water Pump | Type | - | Canned type for hot water circulation |
| Model(Maker,Name) | - | OH SUNG, ODM-061P | |
| Motor type | - | BLDC | |
| Steps of Speed | Step | - | |
| Steps of Pumping Performance | - | Variable speed 10% to 100% | |
| Power input(Min~Max) | W | 17 ~ 152 | |
| Power input(Rated) | W | 110 | |
| Water Flow Rate(Min) | ℓ / min | 5 | |
| Water Flow Rate(Rated) | ℓ / min | 34.5 | |
| Max. Head | m | 11.0 | |
| Internal Pressure drop(water cycle) | kPa | - | |
| Water Pump_2 | Type | - | Canned type for hot water circulation |
| Model(Maker,Name) | - | GRUNDFOS, UPML 20-105 CHBL | |
| Motor type | - | BLDC | |
| Steps of Pumping Performance | - | Variable speed 10% to 100% | |
| Power input(Min~Max) | W | 3.5 ~ 125 | |
| Power input(Rated) | W | 125 | |
| Water Flow Rate(Min) | ℓ / min | 5 | |
| Water Flow Rate(Rated) | ℓ / min | 34.5 | |
| Max. Head | m | 10.5 | |
| Internal Pressure drop(water cycle) | kPa | - | |
| Expansion Tank | Volume(Max) | ℓ | 8 |
| Water Pressure(Max) | bar | 3.2 | |
| Water Pressure(Pre-charged) | bar | 1 | |
| Strainer | Mesh size | mesh | 30 |
| Max. particle size | mm | 0.6 | |
| Material | - | Stainless Steel | |
| Safety Valve(Water cycle) | Pressure Limit(Upper Limit) | bar | 3.0 |
| Flow Sensor | Type | - | - |
| Model(Maker,Name) | - | SIKA VVX20 | |
| Measuring Range(Min~Max) | ℓ/min | 5 ~ 80 | |
| Flow Sensor(2) | Type | - | - |
| Model (Maker,Name) | - | SEBA LGF-080-C20-E-C0.5V | |
| Measuring Range (Min~Max) | ℓ/min | 5 ~ 80 | |
| Water Pressure Sensor | Model(Maker,Name) | - | Sensata OFM(2HMP) |
| Measuring Range(Min~Max) | bar(G) | 0~ 20 | |
| Fan | Type | - | Propeller |
| Air Flow Rate(Rated) | ㎥/min x No. | 100.0 X 1 | |
| Fan Motor | Type | - | BLDC |
| Output | W x No. | 250 X 1 | |
| Compressor | Type | - | Twin Rotary |
| Model x No. | - | EDTQ750D × 1 | |
| Piston Displacement | cm³/rev | 75 | |
| Motor Type | - | BLDC | |
| Refrigerant | Type | - | R290 |
| Precharged Amount | kg | 1.0 | |
| GWP(Global Warming Potential) | - | 0.02 | |
| t-CO₂ eq. | - | - | |
| Control Type | - | Electronic Expansion Valve | |
| Refrigerant Oil | Type | - | PAG VG60 |
| Charged Volume | cc x No. | 1250 | |
| Heat Exchanger | Rows x Columns x FPI | - | 2 x 46 x 18 |
| No. | EA | 1 | |
| Fin Type | - | Corrugate | |
| Heat Exchanger(Refrigerant to Water) | Type | - | Brazed Plate HEX |
| Quantity | EA | 1 | |
| Number of Plate | Sheet | 72 | |
| Water Volume | ℓ | 1.0 | |
| Water Connecting Pipes | Inlet | inch | Male PT 1" according to ISO 7-1 (tapered pipe threads) |
| Outlet | inch | Male PT 1" according to ISO 7-1 (tapered pipe threads) | |
| Sound Pressure Level | Heating(Rated, @1m) | dB(A) | 34 |
| Sound Power Level | Heating(Low Noise) | dB(A) | 56 |
| Heating(Rated) | dB(A) | 56 | |
| Heating(Daytime max) | dB(A) | 65 | |
| Dimensions | Net(W) | mm | 1320 |
| Net(H) | mm | 1019 | |
| Net(D) | mm | 520 | |
| Net(W x H x D) | mm | 1320 x 1019 x 520 | |
| Net(W x D x H) | mm | 1320 x 520 x 1019 | |
| Shipping(W) | mm | 1380 | |
| Shipping(H) | mm | 1200 | |
| Shipping(D) | mm | 575 | |
| Shipping(W x H x D) | mm | 1380 x 1200 x 575 | |
| Weight | Net | kg | 131 |
| Shipping | kg | 147 | |
| Exterior | Color of chassis | - | Black STS Silver Solid |
| RAL Code of chassis | - | RAL 8019 | |
| Color of Front Grille | - | Light Graphite | |
| RAL Code of Front Grille | - | RAL8022 | |
| Max Allowable Pressure | High / Low | MPa | 3.2 / 1.4 |
| Connecting Cable | Power Supply Cable(H07RN-F, included earth) | mm² × cores | 2.5 x 5C |
