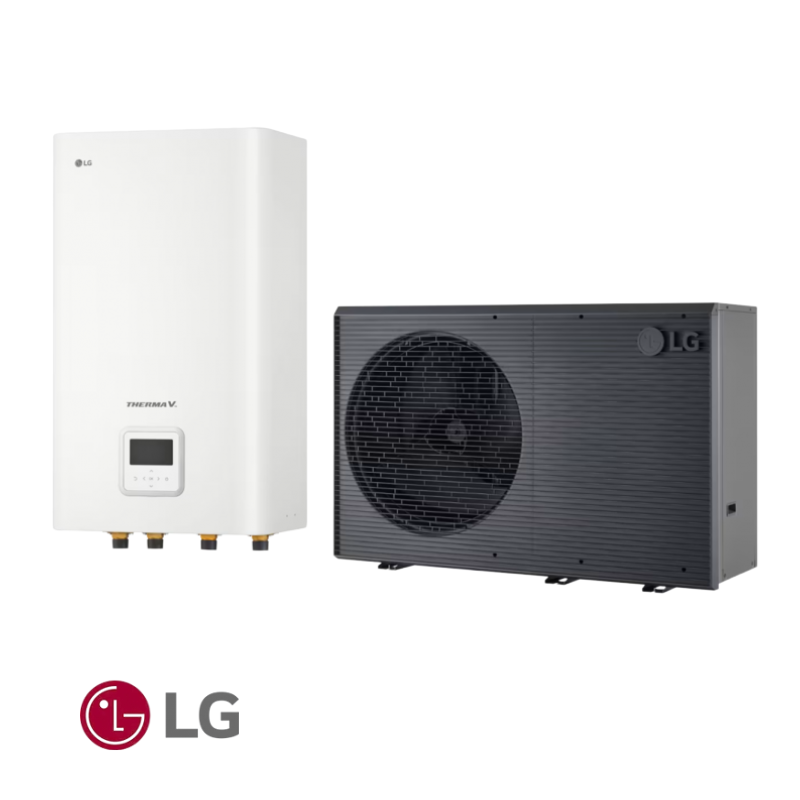

Термопомпа LG Monobloc HM121HF.UB60 / HN1616HC.NK0
€9.238,80 EUR
| Efficiency Data | Unit | 12 kW | |
|---|---|---|---|
| Seasonal space heating eff.class ( 35°C / 55°C ) | - | A+++ / A+++ | |
| Seasonal space heating efficiency ( 35°C / 55°C ) | % | 215 / 156 | |
| SCOP ( 35°C / 55°C ) | - | 5.45 / 3.97 | |
| Water heating efficiency ( profile L ) | % | 130 | |
| Nominal Capacity and COP / EER | Unit | ||
| Air + 7°C / Water + 35°C | Heating capacity / COP | kW / - | 12.00 / 4.70 |
| Air + 2°C / Water + 35°C | Heating capacity / COP | kW / - | 12.00 / 3.72 |
| Air - 7°C / Water + 35°C | Heating capacity / COP | kW / - | 11.80 / 3.27 |
| Air + 7°C / Water + 55°C | Heating capacity / COP | kW / - | 10.00 / 3.10 |
| Air - 7°C / Water + 55°C | Heating capacity / COP | kW / - | 9.30 / 2.32 |
| Air + 35°C / Water + 18°C | Heating capacity / EER | kW / - | 11.50 / 3.78 |
| Air + 35°C / Water + 7°C | Heating capacity / EER | kW / - | 10.50 / 3.12 |

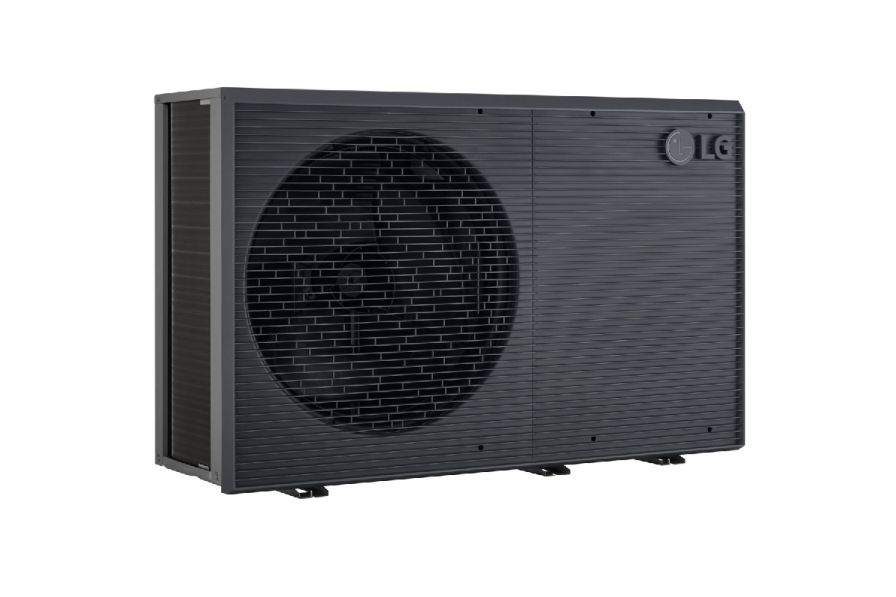

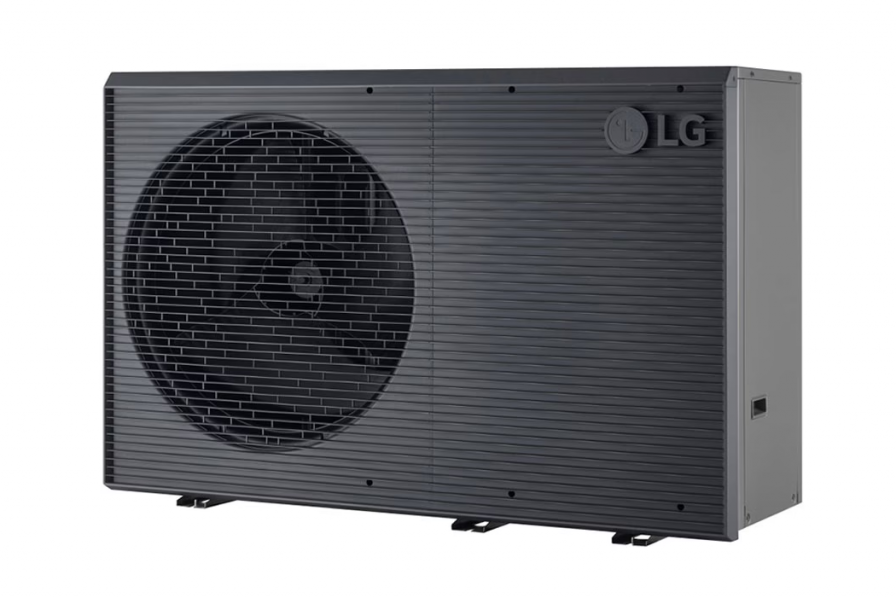

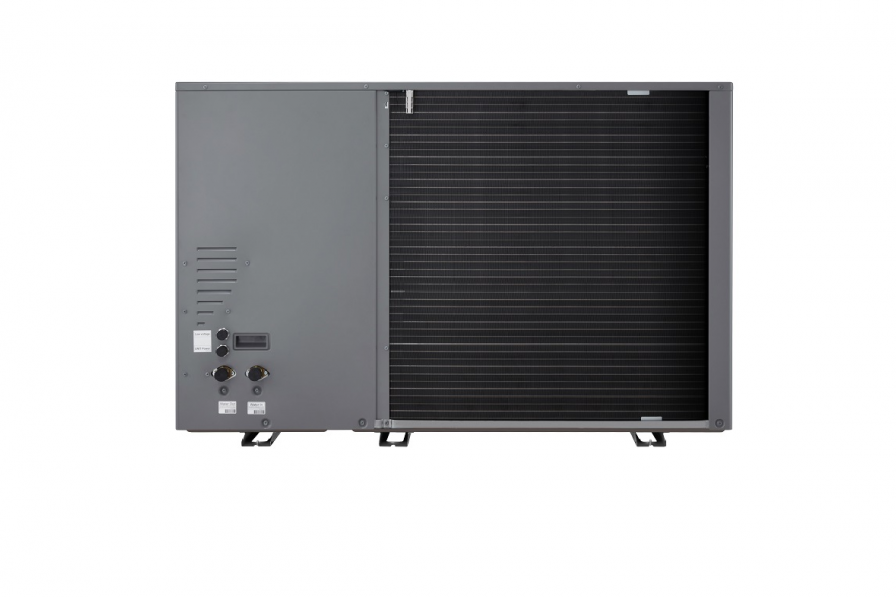

| Outdoor Unit | HM121HF.UB60 | ||
| Operation range (outdoor air temperature) |
Heating & DHW ( Min. - Max. ) | °C | - 28 ~ 35 |
| Cooling ( Min. - Max. ) | °C | 5 ~ 48 | |
| Refrigerent | Type | - | R290 |
| GWP | - | 3 | |
| Precharged amount | g | 1,200 | |
| t-CO2 eq. | - | 0.0036 | |
| Piping connections ( water ) | Inlet / outler diameter | inch | Male PT 1'' according to ISO 7-1 ( tapered pipe threads ) |
| Dimension | W x H x D | mm | 1,560 x 1,019 x 520 |
| Weight | Empty | kg | 181.0 |
| Exterior | Color of chassis / RAL code | - | Dawn gray / RAL 7037 |
| Color of front grille / RAL code | - | Dark dawn gray / RAL 7012 | |
| Power supply | Voltage, phase, frequency | V, Ø, Hz | 220 - 240 , 1, 50 |
| Recommended circuit breaker | А | 1 Ø; 25 | |
| Sound power level | Rated / Low noise mode | db(A) | 49 / 48 |
| Sound pressure level at 5 m | Rated / Low noise mode | db(A) | 27 / 26 |

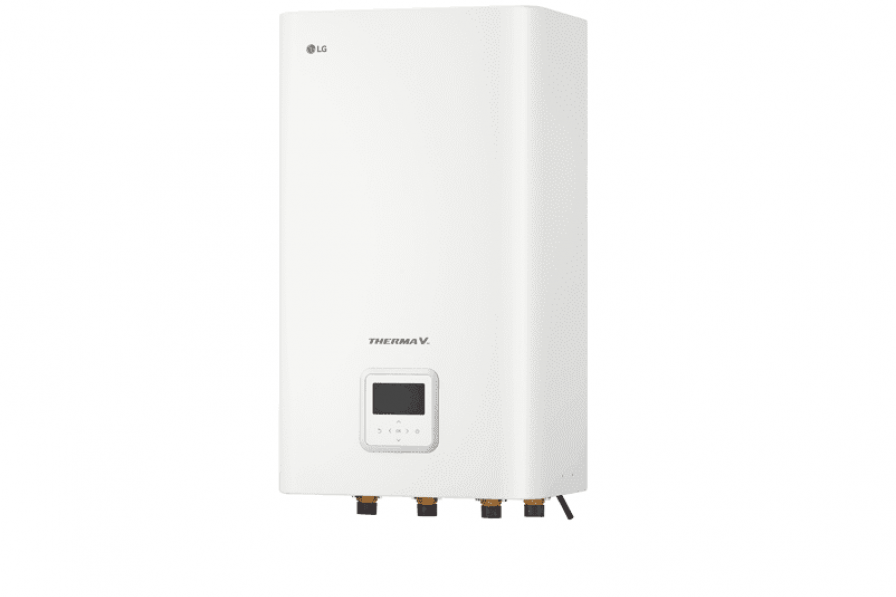

| Hydro Unit | Unit | HN1616HC.NK0 | |
| Operation range (leaving water temperature) |
Heating ( Min. - Max. ) | °C | 15 ~ 75 |
| Cooling ( Min. - Max. ) | °C | 5 ~ 27 | |
| DHW ( Min. - Max. ) | °C | 15 ~ 80 | |
| Backup heater | Capacity combination | kW | 3.0 + 3.0 |
| Power supply | V, Ø, Hz | 220 - 240, 1, 50 | |
| Rated running currect | A | 26 | |
| Piping connections ( water ) | Heating circult outlet pipe | inch | Male PT 1'' according to ISO 7-1 ( tapered pipe threads ) |
| Heating circult inlet pipe | inch | ||
| Outlet pipe to outdoor unit | inch | ||
| Inlet pipe to outdoor unit | inch | ||
| Dimension | W x H x D | mm | 490 x 850 x 315 |
| Weight | Empty | kg | 1 Ø; 30.0 |
| Exterior | Color / RAL code | - | Noble white / RAL 9016 |
| Power supply | Voltage, phase, frequency | V, Ø, Hz | 220 - 240, 1, 50 |
| Recommended circuit breaker | A | 10 | |
| Sound power level | Rated | db(A) | 39 |
| Sound pressure level at 1 m | Rated | db(A) | 31 |
