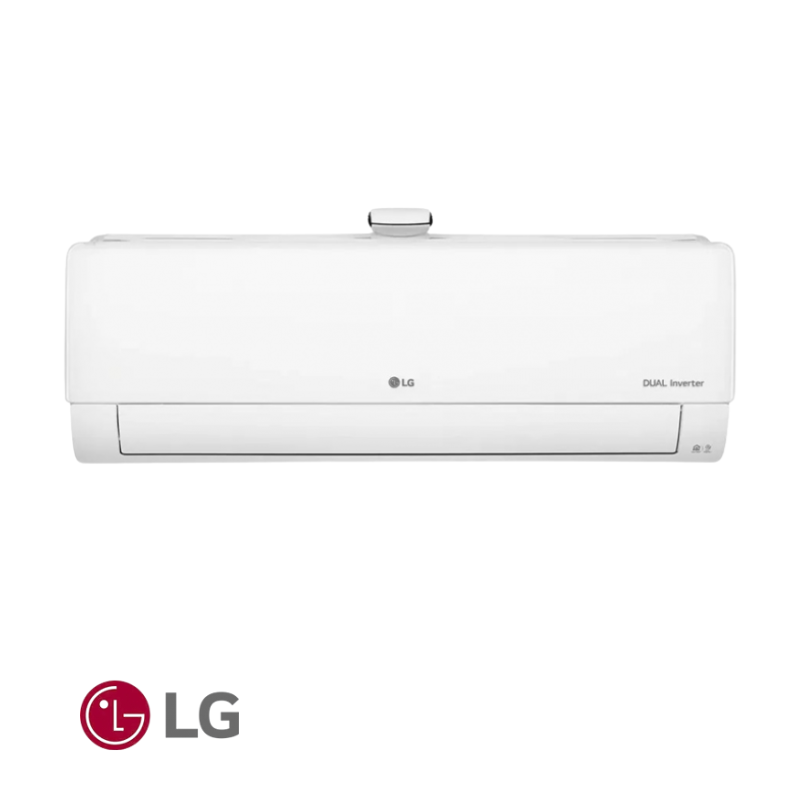

Вътрешно тяло за мултисплит LG AP12RK.NSJ Dualcool with air puricifation

Вътрешно тяло за мултисплит LG AP12RK.NSJ Dualcool with air puricifation

€387,37 EUR
Прескочи към информацията за продукта
Вътрешно тяло за мултисплит LG AP12RK.NSJ Dualcool with air puricifation
  • Вътрешно тяло за мултисплит LG AP12RK.NSJ Dualcool with air puricifation
Вътрешно тяло за мултисплит LG AP12RK.NSJ Dualcool with air puricifation
LG
Мултисплит системи

Вътрешно тяло за мултисплит LG AP12RK.NSJ Dualcool with air puricifation

В наличност
€387,37

Цени с включено ДДС
Безплатна доставка
Wi-Fi
Фреон
Гаранция
3 години
ИНФОРМАЦИЯ

ОСНОВНИ ХАРАКТЕРИСТИКИ :

Вграден пречиствател за въздух (до 27кв.м.)
Йонизатор
Магнитен филтър
Wi-Fi
Възможност за диагностика чрез мобилно устройство
Енергиен контрол и мониторинг
GOLD FIN технология на кондензатора
Самопочистване
Режим за бързо отопление
Охлаждане в 4 посоки
Ниски нива на шум
Тих режим
Хладилен агент R32
Самодиагностика
Безплатна доставка
Model AP12RT.NSJ
Capacity Cooling Min ~ Rated ~ Max kW 0,89 3,5 4
Btu/h 3 039 11 950 13 658
kcal/h 766 3 011 3 442
Heating Min ~ Rated ~ Max kW 0,89 4 4,7
Btu/h 3 039 13 658 16 036
kcal/h 766 3 442 4 043
Power Input Cooling Min ~ Rated ~ Max W 200 1 160 1 450
Heating Min ~ Rated ~ Max W 195 1 130 1 600
Running Current Cooling Min ~ Rated ~ Max A 1,1 5,2 6,2
Heating Min ~ Rated ~ Max A 1,1 5,1 7
EER W/W 3,02
(Btu/h)/W 10,3
SEER - 6,2
P design C kW 3,5
COP W/W 3,54
(Btu/h)/W 12,09
SCOP - 4
P design H kW 2,5
Energy Label Grade Cooling - A++
Heating - A+
Power Supply Ø, V, Hz 1 220~240 50
Available Voltage Range V 187 ~ 276
Power Factor Cooling % 97
Heating % 96
Moisture Removal l/h 1,3
pts/h 2,75
Indoor Air Flow Rate Cooling, Max / H / M / L m³/min 11.0 / 10.0 / 6.6 / 4.2
CFM 388 / 353 / 233 / 148
Heating, Max / H / M / L m³/min 11.0 / 10.0 / 6.6 / 4.2
CFM 388 / 353 / 233 / 148
Sound Pressure Level Cooling, Max / H / M / L / SL dB(A) 45 / 41 / 35 / 27 / 20
Heating, Max / H / M / L dB(A) 45 / 41 / 35 / 30 / -
Sound Power Level dB(A) 59
Dimensions (W × H × D) Net mm 857 348 190
in. 33-3/4 13.11.2016 7-15/32
Shipping mm 915 401 251
in. 36-1/32 15-25/32 9.7.2008
Weight Net kg 9,5
lb. 20,9
Shipping kg 12,4
lb. 27,3
Operation Range Cooling °C DB 18 ~ 32
°F DB 64.4 ~ 89.6
Cooling °C WB 12 ~ 23
°F WB 53.6 ~ 73.4
Heating °C DB 16 ~ 30
°F DB 60.8 ~ 86
Outdoor Air Flow Rate Max m³/min 27
CFM SJ / UA3
Fan Motor Speed Cooling, Min ~ Max rpm 230 - 1000
Heating, Min ~ Max rpm 230 - 1000
Sound Pressure Level Cooling, Rated dB(A) 48
Heating, Rated dB(A) 50
Sound Power Level dB(A) 65
Dimensions (W × H × D) Net mm 717 495 230
in. 28.7.1932 19.1.2002 9.1.2016
Shipping mm 837 530,5 317
in. 32-15/16 20.7.2008 12-15/32
Weight Net kg 26
lb. 57,3
Shipping kg 27,8
lb. 61,3
Max. Fuse Size A 15
Operation Range Cooling °C DB -10 ~ 48
°F DB 14 ~ 118.4
Heating °C DB -10 ~ 24
°F DB 14 ~ 75.2
Heating °C WB -10 ~ 18
°F WB 14 ~ 64.4
Circuit Breaker A 15
Power Supply Cable No. 3
mm² 1
AWG 16
Power Supply to Unit - Outdoor
Power and Communication Cable No. 4
mm² 1
AWG 16
Piping Size Liquid mm ø 6.35
in. ø 1/4
Gas mm ø 9.52
in. ø 3/8
Connections Method Indoor / Outdoor - Flared / Flared
Drain Hose Size O.D, I.D mm 21.5, 16.0
in. 27/32, 5/8
Between Indoor Piping Length Min / Standard / Max m 3 7,5 15
& Outdoor ft. 9,8 24,6 49,2
No Charge m 7,5
ft. 24,6
Max. Elevation Difference m 7
ft. 23
Piping Connection Heat Insulation - Both liquid and gas pipes
Refrigerant Type - R32
Pre Charge g 700
oz. 24,7
Additional Charge g/m 20
oz./ft. 0,22
Control - Electronic Expansion Valve
Global Warning Potential - 675
t-CO₂ eq - 0,473
Defrost Method - Reverse Cycle
Tool Code (Chassis) Indoor / Outdoor - SJ / UA3
Compressor Type - Twin Rotary
Model - DST102MAA
Motor Type - BLDC
Oil Type / Maker - PVE (FW68D) / IDEMITSU
Oil Charge cc 280
O.L.P. Name - -
Manufacturer / Country of Origin - LG Electronics / China
Fan(Indoor) Type - Cross Flow Fan
Motor Output W 30
Fan(Outdoor) Type - Propeller Fan
Motor Type - BLDC
Motor Output W 43
Motor Insulation - Class E
Motor Enclosure / Ingress Protection - TEAO IPX4
Heat Exchanger Evaporator Material, Tube / Fin - Cu / Al
(ø x Row x Column x FPI x L) x Qty. #1 (ø7 x 2 x 15 x 21 x 616.8) x 1
Corrosion Protection - PCM
Fin Type - Slit
Condenser Material, Tube / Fin - Cu / Al
(ø x Row x Column x FPI x L) x Qty. #1 (ø7 x 2 x 22 x 18 x 667) x 1
Corrosion Protection - Gold
Fin Type - Corrugate

Model AP12RT.NSJ
Capacity Cooling Min ~ Rated ~ Max kW 0,89 3,5 4
Btu/h 3 039 11 950 13 658
kcal/h 766 3 011 3 442
Heating Min ~ Rated ~ Max kW 0,89 4 4,7
Btu/h 3 039 13 658 16 036
kcal/h 766 3 442 4 043
Power Input Cooling Min ~ Rated ~ Max W 200 1 160 1 450
Heating Min ~ Rated ~ Max W 195 1 130 1 600
Running Current Cooling Min ~ Rated ~ Max A 1,1 5,2 6,2
Heating Min ~ Rated ~ Max A 1,1 5,1 7
EER W/W 3,02
(Btu/h)/W 10,3
SEER - 6,2
P design C kW 3,5
COP W/W 3,54
(Btu/h)/W 12,09
SCOP - 4
P design H kW 2,5
Energy Label Grade Cooling - A++
Heating - A+
Power Supply Ø, V, Hz 1 220~240 50
Available Voltage Range V 187 ~ 276
Power Factor Cooling % 97
Heating % 96
Moisture Removal l/h 1,3
pts/h 2,75
Indoor Air Flow Rate Cooling, Max / H / M / L m³/min 11.0 / 10.0 / 6.6 / 4.2
CFM 388 / 353 / 233 / 148
Heating, Max / H / M / L m³/min 11.0 / 10.0 / 6.6 / 4.2
CFM 388 / 353 / 233 / 148
Sound Pressure Level Cooling, Max / H / M / L / SL dB(A) 45 / 41 / 35 / 27 / 20
Heating, Max / H / M / L dB(A) 45 / 41 / 35 / 30 / -
Sound Power Level dB(A) 59
Dimensions (W × H × D) Net mm 857 348 190
in. 33-3/4 13.11.2016 7-15/32
Shipping mm 915 401 251
in. 36-1/32 15-25/32 9.7.2008
Weight Net kg 9,5
lb. 20,9
Shipping kg 12,4
lb. 27,3
Operation Range Cooling °C DB 18 ~ 32
°F DB 64.4 ~ 89.6
Cooling °C WB 12 ~ 23
°F WB 53.6 ~ 73.4
Heating °C DB 16 ~ 30
°F DB 60.8 ~ 86
Outdoor Air Flow Rate Max m³/min 27
CFM SJ / UA3
Fan Motor Speed Cooling, Min ~ Max rpm 230 - 1000
Heating, Min ~ Max rpm 230 - 1000
Sound Pressure Level Cooling, Rated dB(A) 48
Heating, Rated dB(A) 50
Sound Power Level dB(A) 65
Dimensions (W × H × D) Net mm 717 495 230
in. 28.7.1932 19.1.2002 9.1.2016
Shipping mm 837 530,5 317
in. 32-15/16 20.7.2008 12-15/32
Weight Net kg 26
lb. 57,3
Shipping kg 27,8
lb. 61,3
Max. Fuse Size A 15
Operation Range Cooling °C DB -10 ~ 48
°F DB 14 ~ 118.4
Heating °C DB -10 ~ 24
°F DB 14 ~ 75.2
Heating °C WB -10 ~ 18
°F WB 14 ~ 64.4
Circuit Breaker A 15
Power Supply Cable No. 3
mm² 1
AWG 16
Power Supply to Unit - Outdoor
Power and Communication Cable No. 4
mm² 1
AWG 16
Piping Size Liquid mm ø 6.35
in. ø 1/4
Gas mm ø 9.52
in. ø 3/8
Connections Method Indoor / Outdoor - Flared / Flared
Drain Hose Size O.D, I.D mm 21.5, 16.0
in. 27/32, 5/8
Between Indoor Piping Length Min / Standard / Max m 3 7,5 15
& Outdoor ft. 9,8 24,6 49,2
No Charge m 7,5
ft. 24,6
Max. Elevation Difference m 7
ft. 23
Piping Connection Heat Insulation - Both liquid and gas pipes
Refrigerant Type - R32
Pre Charge g 700
oz. 24,7
Additional Charge g/m 20
oz./ft. 0,22
Control - Electronic Expansion Valve
Global Warning Potential - 675
t-CO₂ eq - 0,473
Defrost Method - Reverse Cycle
Tool Code (Chassis) Indoor / Outdoor - SJ / UA3
Compressor Type - Twin Rotary
Model - DST102MAA
Motor Type - BLDC
Oil Type / Maker - PVE (FW68D) / IDEMITSU
Oil Charge cc 280
O.L.P. Name - -
Manufacturer / Country of Origin - LG Electronics / China
Fan(Indoor) Type - Cross Flow Fan
Motor Output W 30
Fan(Outdoor) Type - Propeller Fan
Motor Type - BLDC
Motor Output W 43
Motor Insulation - Class E
Motor Enclosure / Ingress Protection - TEAO IPX4
Heat Exchanger Evaporator Material, Tube / Fin - Cu / Al
(ø x Row x Column x FPI x L) x Qty. #1 (ø7 x 2 x 15 x 21 x 616.8) x 1
Corrosion Protection - PCM
Fin Type - Slit
Condenser Material, Tube / Fin - Cu / Al
(ø x Row x Column x FPI x L) x Qty. #1 (ø7 x 2 x 22 x 18 x 667) x 1
Corrosion Protection - Gold
Fin Type - Corrugate
