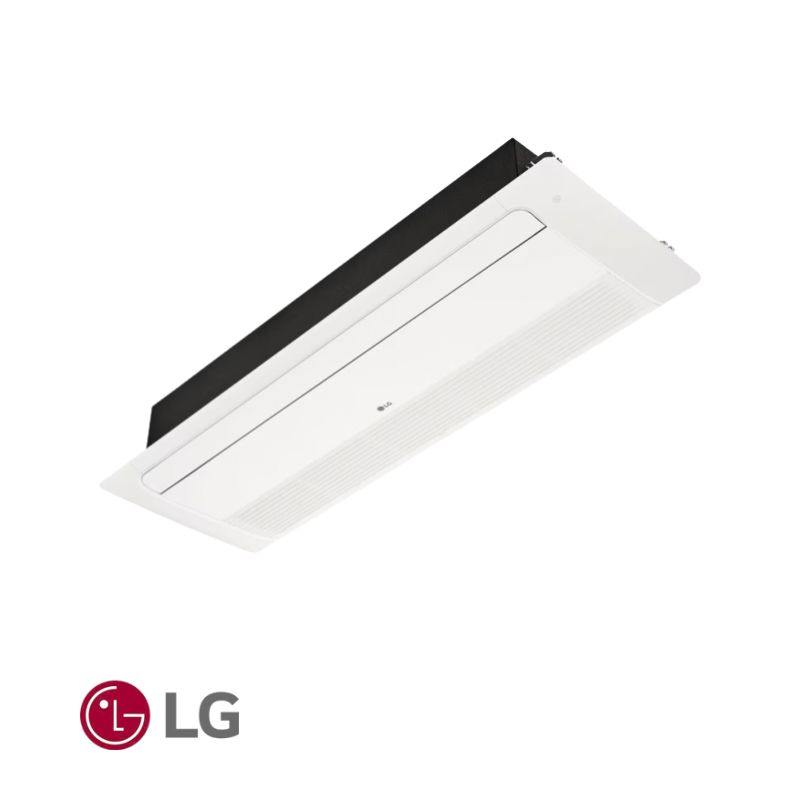

Вътрешно касетъчно тяло за мултисплит / 1Way LG MT09R.NU1
€487,20 EUR
| Model | MT09R.NU1 | |||
|---|---|---|---|---|
| Power Supply | V, Ø, Hz | 220-240, 1, 50 | ||
| 220, 1, 60 | ||||
| Capacity(Nominal) | Cooling | kW | 2,6 | |
| Heating | kW | 2,9 | ||
| Power Input | W x No. | 20 × 1 | ||
| Running Current | A | 0,2 | ||
| Exterior | Color | - | Steel Gray | |
| Dimensions | Body | W x H x D | mm | 860 × 132 × 450 |
| W x H x D | inch | 33-27/32 x 5-3/16 x 17-23/32 |
||
| Net Weight | Body | kg (lbs) | 11.7 (25.8) | |
| Heat Exchanger | (Row x Column x Fins per inch) x No. | - | (2 x 12 x 18) x 1 | |
| Face Area | m2 (ft2) | 0.18 (1.90) | ||
| Fan | Type | - | Cross Flow Fan | |
| Air Flow Rate | H / M / L | m3/min | 7.5 / 7.3 / 6.8 | |
| H / M / L | ft3/min | 265 / 258 / 240 | ||
| Fan Motor | Type | - | BLDC | |
| Output | W x No. | 20 x 1 | ||
| Sound Pressure Level | H / M / L | dB(A) | 36 / 34 / 32 | |
| Sound Power Level | Rated | dB(A) | 54 | |
| Piping Connections | Liquid | mm(inch) | Ø 6.35 (1/4) | |
| Gas | mm(inch) | Ø 9.52 (3/8) | ||
| Drain (O.D. / I.D.) | mm | Ø 32.0 / 25.0 | ||
| Safety Devices | - | Fuse | ||
| - | Thermal Protector for Fan Motor | |||
| Power and Communication Cable (included Earth) | No. x mm2 (AWG) | 4C x 0.75 (18) | ||
