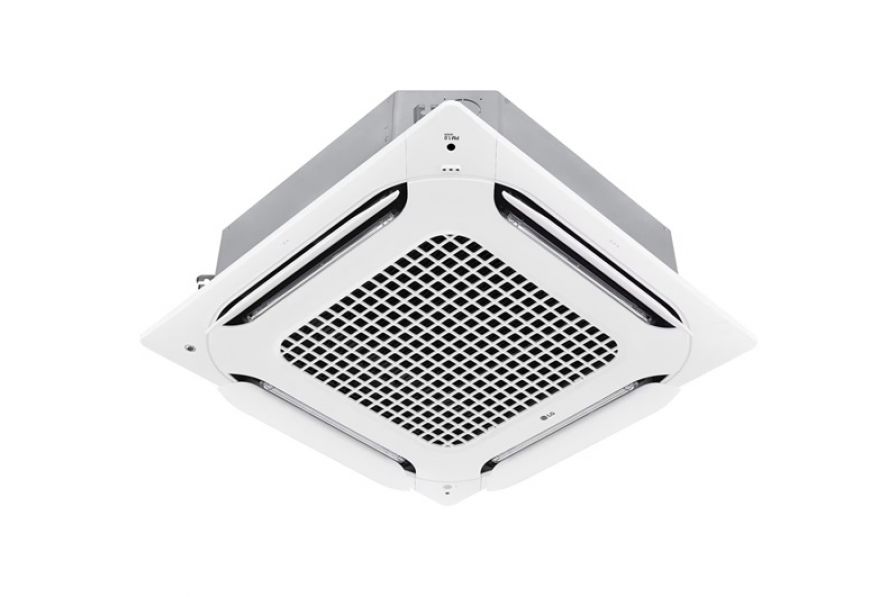

Четирипътна касета LG UT48F.NA0 / UUD3.U30
€3.671,21 EUR
| COMBINATION | ||||
|---|---|---|---|---|
| Capacity | Cooling | Min./Rated/Max. | kW | 5.4 / 13.4 / 15.7 |
| Heating | 6.2 / 15.5 / 17.5 | |||
| Power Input (Set) | Cooling | Min./Rated/Max. | kW | 0.90 / 4.25 / 5.53 |
| Heating | 0.90 / 4.37 / 5.33 | |||
| RunningCurrent | Cooling | Rated | A | 18.7 |
| Heating | 19.0 | |||
| EER / COP | kWh/kWh | 3.15 / 3.55 | ||
| SEER / SCOP | kWh/kWh | 6.5 / 4.2 | ||
| P Design | Cooling @ 35°C | |
kW | 13.4 |
| Heating @ -10°C | 9.5 | |||
| Sensonal Energy Label | Cooling / Heating | - / - | ||
| Annual Energy Consumption | Cooling / Heating | kWh | 1,237 / 3,167 | |
| Dehumidification Rate | l/h | 5.7 | ||
| ODU Sound Pressure Level | Cooling / Heating | Rated | dB(A) | 52 / 53 |
| ODU Sound Power Level | Cooling | Rated | dB(A) | 69 |
| Piping Connections | Liquid | Outer Dia | mm (inch) | ø 9.52 (3/8) |
| Gas | Outer Dia | mm (inch) | ø 15.88 (5/8) | |
| Connection Method | - | Flared | ||
| Operation Range (Outdoor) | Cooling | Min. / Max. | °C | - 20 / 52 |
| Heating | - 25 / 18 | |||
| INDOOR | UT48F.NA0 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Power Input | Min. / Nom. / Max. | W | 80 / 60 / 50 | |
| Air Flow Rate | H / M / L | m3/min | 30 / 27.5 / 25 | |
| Dimensions | Body | W x H x D | mm | 840 x 288 x 840 |
| Weight | Body | kg | 25.3 | |
| Sound Pressure Level | Cooling | H / M / L | dB(A) | 46 / 44 / 42 |
| Sound Power Level | Cooling | Max. | dB(A) | 62 |
| Piping Connections | Drain | O.D / I.D | mm | ø 32.0 / 25.0 |
| Panel | Model | PT-AAGW0 | ||
| OUTDOOR | UUD3.U30 | |||
| Power Supply | ø / V / Hz | 3 / 380-415/ 50 | ||
| Circuit Breaker | Min. | A | 20 | |
| Power Supply Cable (included Eart) | No. x mm2 | 5C x 2.5 | ||
| Dimensions | Net | W x H x D | mm | 950 x 1,380 x 330 |
| Weight | Net | kg | 85.0 | |
| Compressor | Type | - | Inverter Scroll | |
| Refrigerant | Type | R32 | ||
| Fan | Air flow Rate | Rated | m3/min x No | 55x2 |
| Total Piping Length | Min. / Max. | m | 5 / 85 | |
| Piping Elevation | IDU-ODU | Max. | m | 30 |
Документи
Installation Manual Outdoor
Installation Manual Indoor
Owner's Manual
DOC UUD3
Labels UUD3 + all indoor units
DOC UT48F
Ръководство за потребителя
