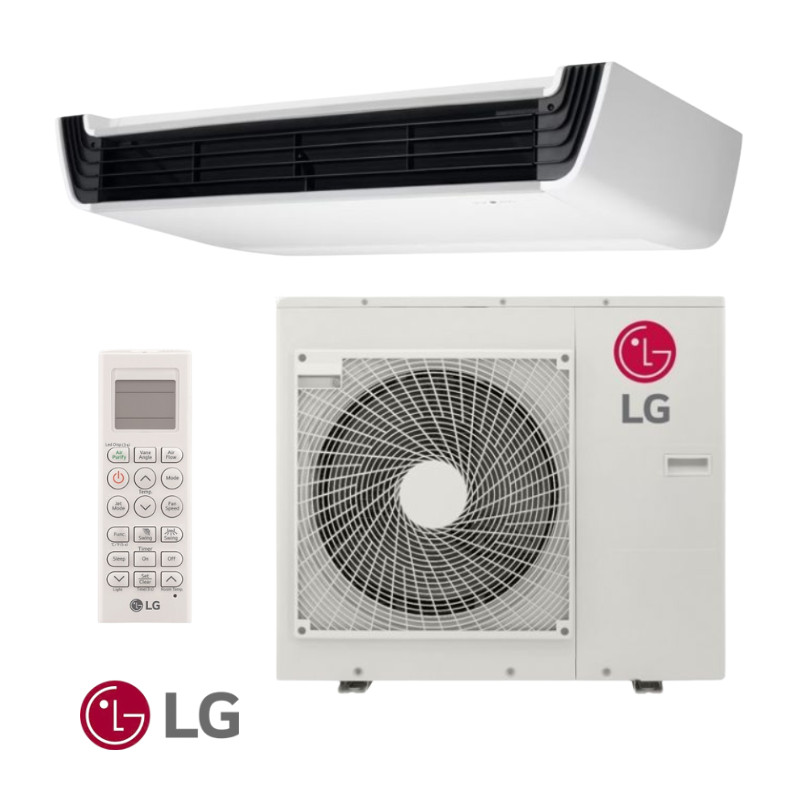

Тяло за открит таванен монтаж LG UV24F.N10 / UUC1.U40
€2.367,68 EUR
| COMBINATION | ||||
|---|---|---|---|---|
| Capacity | Cooling | Min. / Rated / Max. | kW | 2.7 / 6.7 / 8.0 |
| Heating | 3.0 / 7.5 / 9.0 | |||
| Power Input (Set) | Cooling | Min. / Rated / Max. | kW | 0.40 / 1.99 / 2.69 |
| Heating | 0.40 / 2.2 / 3.08 | |||
| Running Current | Cooling | Rated | A | 8.8 |
| Heating | 9.8 | |||
| EER / COP | kWh / kWh | 3.37 / 3.41 | ||
| SEER / SCOP | kWh / kWh | 7.2 / 4.2 | ||
| Pdesign | Cooling @ 35°C | |
kW | 6.7 |
| Heating @ -10°C | 4.9 | |||
| Seasonal Energy Label | Cooling / Heating | - | A++ / A+ | |
| Annual Energy Consumption | Cooling / Heating | kWh | 326 / 1,633 | |
| Dehumidification Rate | l/h | 2.7 | ||
| ODU Sound Pressure Level | Cooling / Heating | Rated | dB(A) | 48 / 52 |
| ODU Sound Power Level | Cooling | Rated | dB(A) | 65 |
| Piping Connections | Liquid | |
mm (inch) | ø 9.52(3/8) |
| Gas | mm (inch) | ø 15.88 (5/8) | ||
| Connections Method | - | Flared | ||
| Operation Range (Outdoor) | Cooling | Min. / Max. | °C | - 20 / 50 |
| Heating | - 20 / 18 | |||

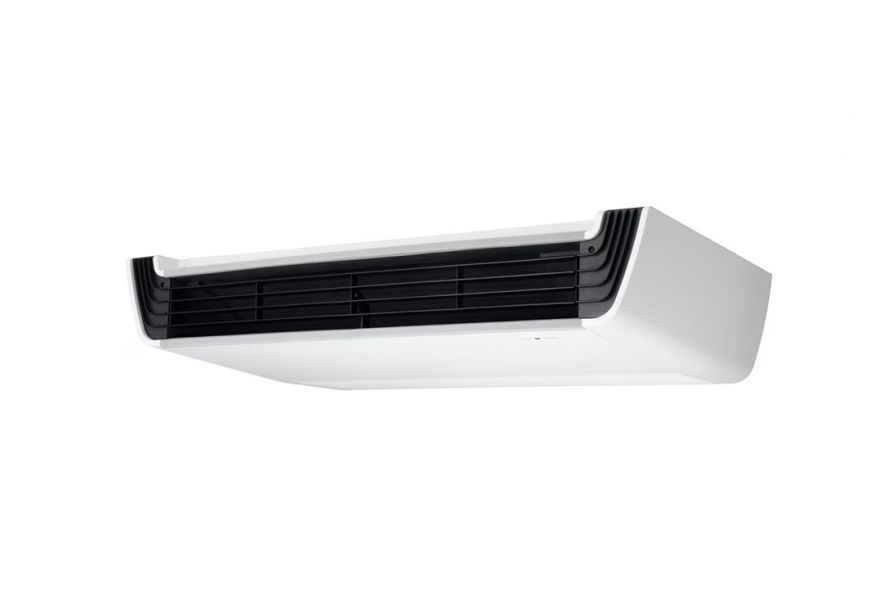

| INDOOR | UV24F.N10 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Power Input (IDU) | H / M / L | W | 33 / 26 / 19 | |
| Air Flow Rate | H / M / L | m3/min | 16 / 15 / 14 | |
| Dimensions | Body | W x H x D | mm | 1,200 / 235 / 690 |
| Weight | Body | kg | 28 | |
| Sound Pressure Level | Cooling | H / M / L | dB(A) | 46 / 45 / 43 |
| Sound Power Level | Cooling | Max. | dB(A) | 61 |
| Piping Connections | Drain (Natural Drainage) | O.D / I.D | mm | ø 25.0 / 20.5 |
| Drain (Using Drain Pump) | ø 32.0 / 26.0 | |||

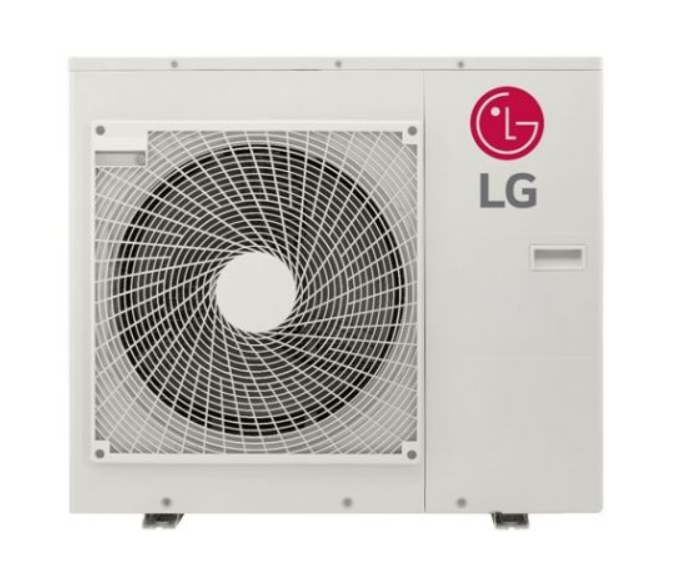

| OUTDOOR | UUC1.U40 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Circuit Breaker | Min. | A | 25 | |
| Power Supply Cable (Included Eart) | No x mm3 | 3C x 2.5 | ||
| Dimensios | Net | W x H x D | mm | 950 / 834 / 330 |
| Weight | Net | kg | 57.7 | |
| Compressor | Type | - | Twin Rotary | |
| Refrigerant | Type | - | R32 | |
| Fan | Air Flow Rate | Rated | m3/min x No | 58 x 1 |
| Total Piping Lenght | Min. / Max. | m | 5 / 50 | |
| Piping Elevation | IDU - ODU | Max. | m | 30 |
Документи
Installation Manual Outdoor
Installation Manual Indoor
Owner's Manual
DOC UUC1
Labels UUC1 + all indoor units
DOC UV24F
Ръководство за потребителя
