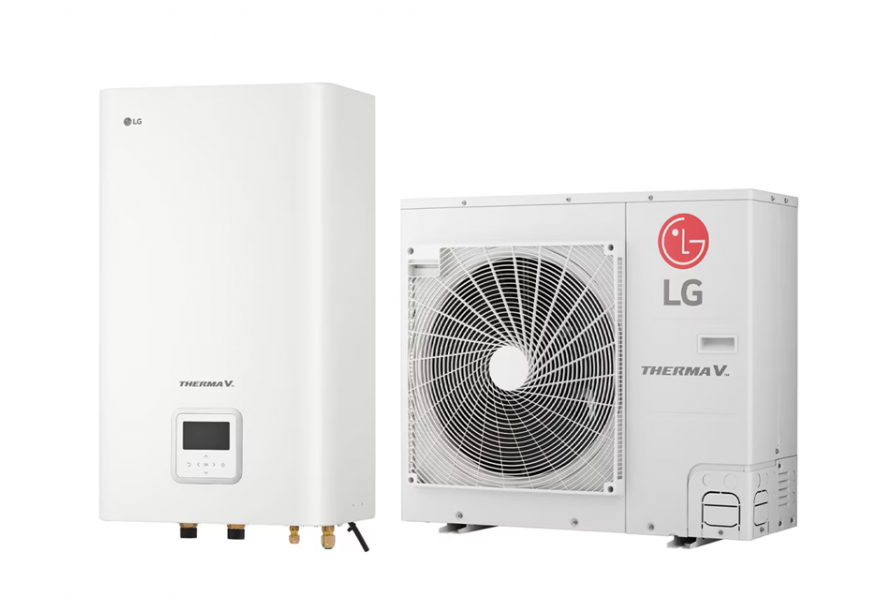

Термопомпа LG Split HU091MR.U44 / HN091MR.NK5
€5.535,60 EUR
| Nominal Capacity and Nominal Input | HU091MR U44 | ||||
|---|---|---|---|---|---|
| Condition | Outdoor Temp. | Leaving Water Temp. (°С) | - | ||
| (°С) DB / WB | |||||
| Capacity | Cooling | 35 / 24 | 18 | kW | 9 |
| 35 / 24 | 7 | kW | 9 | ||
| Heating | 7.6 | 35 | kW | 9 | |
| EER | Cooling | 35 / 24 | 18 | W/W | 4,2 |
| 35 / 24 | 7 | W/W | 2,6 | ||
| COP | Heating | 7.6 | 35 | W/W | 4,65 |
| Electrical Specifications | HU091MR U44 | ||||
| Power Supply | V, Ø, Hz | 220-240, 1, 50 | |||
| Maximum Running Current | Cooling | A | 23 | ||
| Heating | A | 23 | |||
| Peak Control Running Current | Cooling | A | 15 | ||
| Heating | A | 15 | |||
| Rated Running Current | Cooling | A | 9,5 | ||
| Heating | A | 8,6 | |||
| Circuit breaker | A | 25 | |||
| Wiring Connections | Power Supply Cable (included Earth) | No × mm2 | 3 × 4.0 (H07RN-F) | ||
| Technical Specifications | HU091MR U44 | ||||
| Sound Power Level | Heating | Rated | dB(A) | 60 | |
| Low noise | dB(A) | 58 | |||
| Sound Pressure Level (at 1m) | Heating | Rated | dB(A) | 50 | |
| Dimensions | Unit | W × H × D | mm | 950 × 834 × 330 | |
| Packed Unit | W × H × D | mm | 1,065 × 618 × 461 | ||
| Weight | Unit | kg | 60 | ||
| Packed Unit | kg | 65 | |||
| Outdoor Units | HU091MR.U44 | ||||
| Operation Range (Outdoor Temperature) | Cooling | Min. ~ Max. | °C DB | 5 ~ 48 | |
| Heating | Min. ~ Max. | °C DB | -25 ~ 35 | ||
| Compressor | Type | - | Hermetic Sealed Scroll | ||
| Model | Model × No. | RJB036MAA × 1 | |||
| Motor Type | - | BLDC | |||
| Displacement | cm3/Rev. | 31,6 | |||
| Refrigerant | Type | - | R32 | ||
| GWP (Global Warming Potential) | - | 675 | |||
| Precharged Amount | g | 1 500 | |||
| t-CO2 eq. | - | 1,013 | |||
| Control | - | Electronic Expansion Valve | |||
| Refrigerant Oil | Type | - | FW68D | ||
| Charged Volume | cc × No. | 1 100 | |||
| Piping Connections | Gas | Type | Flare | ||
| mm(Inch) | Ф 15.88 (5/8) | ||||
| Liquid | Type | Flare | |||
| mm(Inch) | Ф 9.52 (3/8) | ||||
| Piping Length | Standard | m | 5 | ||
| Max. | m | 50 | |||
| Piping Level Difference | Max. | m | 30 | ||
| Chargeless-Pipe Length | m | 10 | |||
| Additional Charging Volume | g/m | 30 | |||
| Heat Exchanger | Quantity | EA | 1 | ||
| Specification | Row | EA | 2 | ||
| Column | EA | 38 | |||
| FPI | EA | 14 | |||
| Fan | Type | - | Propeller | ||
| Air Flow Rate | Rated | m3/min × No. | 60.0 × 1 | ||
| Fan Motor | Type | - | BLDC | ||
| Output | W × No. | 124 × 1 | |||
| Indoor Unit | HN091MR.NK5 | ||||
| Operation Range (Leaving Water Temperature) | Cooling | Min. ~ Max. | °C DB | 5 ~ 27 | |
| Heating | Min. ~ Max. | °C DB | 15 ~ 65 | ||
| DHW * | Min. ~ Max. | °C DB | 15 ~ 80 | ||
| Water Pump | Type | - | Canned type for hot water circulation | ||
| Model | GRUNDFOS UPM3K 20-75 CHBL | ||||
| Motor Type | - | BLDC | |||
| Steps of Pump Performance | - | Variable capacity 10% to 100% | |||
| Power input | Min. ~ Max. | W | 3 ~ 60 | ||
| Heat Exchanger | Type | - | Brazed Plate HEX | ||
| Quantity | 1 | ||||
| Number of Plate | EA | 54 | |||
| Water Volume | ˜ | 0,7 | |||
| Flow Sensor | Type | - | Vortex | ||
| Model | - | SIKA VVX20 | |||
| Measuring Range | Min. ~ Max. | ˜/min | 5 ~ 80 | ||
| Flow (Trigger point) | Min. | ˜/min | 7 | ||
| Expansion Vessel | Volume | Max. | ˜ | 8 | |
| Water pressure | Max. | bar | 3 | ||
| Water pressure | Pre-charged | bar | 1 | ||
| Strainer | Mesh size | - | 28 mesh | ||
| Material | - | Stainless Steel | |||
| Relief valve | Pressure Limit | Upper Limit | bar | 3 | |
| Piping Connections | Water Circuit | Inlet | mm(Inch) | Male PT 25(1") | |
| Outlet | mm(Inch) | Male PT 25(1") | |||
| Refrigerant Circuit | Gas | mm(Inch) | Ф 15.88 (5/8) | ||
| Liquid | mm(Inch) | Ф 9.52 (3/8) | |||
| Wiring Connections | Communication Cable (included Earth) | No × mm2 | 4 × 0.75 (H07RN-F) | ||
| Sound Power Level | Heating | Rated | dB(A) | 44 | |
| Dimensions | Unit | W × H × D | mm | 490 × 850 × 315 | |
| Packed Unit | W × H × D | mm | 563 ×1082 × 375 | ||
| Weight | Unit | kg | 41 | ||
| Packed Unit | kg | 47 | |||
