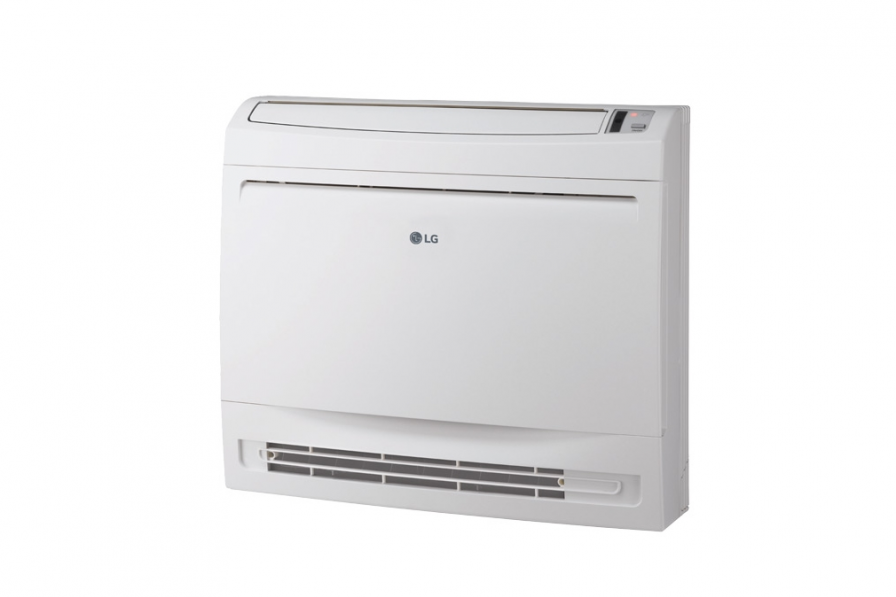

Подова конзола LG UQ18F.NA0 / UUB1.U20
€2.167,46 EUR
| COMBINATION | ||||
|---|---|---|---|---|
| Capacity | Cooling | Min. / Rated / Max. | kW | 2.0 / 5.0 / 5.8 |
| Heating | 2.0 / 4.9 / 5.4 | |||
| Power Input (Set) | Cooling | Min. / Rated / Max. | kW | 0.40 / 1.75 / 2.45 |
| Heating | 0.30 / 1.56 / 2.11 | |||
| Running Current | Cooling | Rated | A | 8.3 |
| Heating | 8.0 | |||
| EER / COP | kWh / kWh | 2.85 / 3.14 | ||
| SEER / SCOP | kWh / kWh | 5.8 / 3.8 | ||
| Pdesign | Cooling @ 35°C | |
kW | 5 |
| Heating @ -10°C | 3.8 | |||
| Seasonal Energy Label | Cooling / Heating | - | A+ / A | |
| Annual Energy Consumption | Cooling / Heating | kWh | 302 / 1,396 | |
| Dehumidification Rate | l/h | 2.4 | ||
| ODU Sound Pressure Level | Cooling / Heating | Rated | dB(A) | 47 / 52 |
| ODU Sound Power Level | Cooling | Rated | dB(A) | 63 |
| Piping Connections | Liquid | |
mm (inch) | ø 6.35 (1/4) |
| Gas | mm (inch) | ø 12.7 (1/2) | ||
| Connections Method | - | Flared | ||
| Operation Range (Outdoor) | Cooling | Min. / Max. | °C | - 15 / 50 |
| Heating | - 20 / 18 | |||
| INDOOR | UQ18F.NA0 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Power Input (IDU) | H / M / L | W | 44 / 39 / 35 | |
| Air Flow Rate | H / M / L | m3/min | 10.1 / 8.6 / 7.2 | |
| Dimensions | Body | W x H x D | mm | 700 / 600 / 210 |
| Weight | Body | kg | 16.3 | |
| Sound Pressure Level | Cooling | H / M / L | dB(A) | 44 / 39 / 35 |
| Sound Power Level | Cooling | Max. | dB(A) | 60 |
| Piping Connections | Drain | O.D / I.D | mm | ø 16.7 / 12.2 |
| OUTDOOR | UUB1.U20 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Circuit Breaker | Min. | A | 20 | |
| Power Supply Cable (Included Eart) | No x mm3 | 3C x 2.5 | ||
| Dimensios | Net | W x H x D | mm | 870 / 650 / 330 |
| Weight | Net | kg | 44.5 | |
| Compressor | Type | - | Twin Rotary | |
| Refrigerant | Type | - | R32 | |
| Fan | Air Flow Rate | Rated | m3/min x No | 50 x 1 |
| Total Piping Lenght | Min. / Max. | m | 5 / 30 | |
| Piping Elevation | IDU - ODU | Max. | m | 30 |
Документи
Installation Manual Outdoor
Installation Manual Indoor
Owner's Manual
ODU PDB CAC
DOC
Labels UUB1 + all indoor units
Ръководство за потребителя
