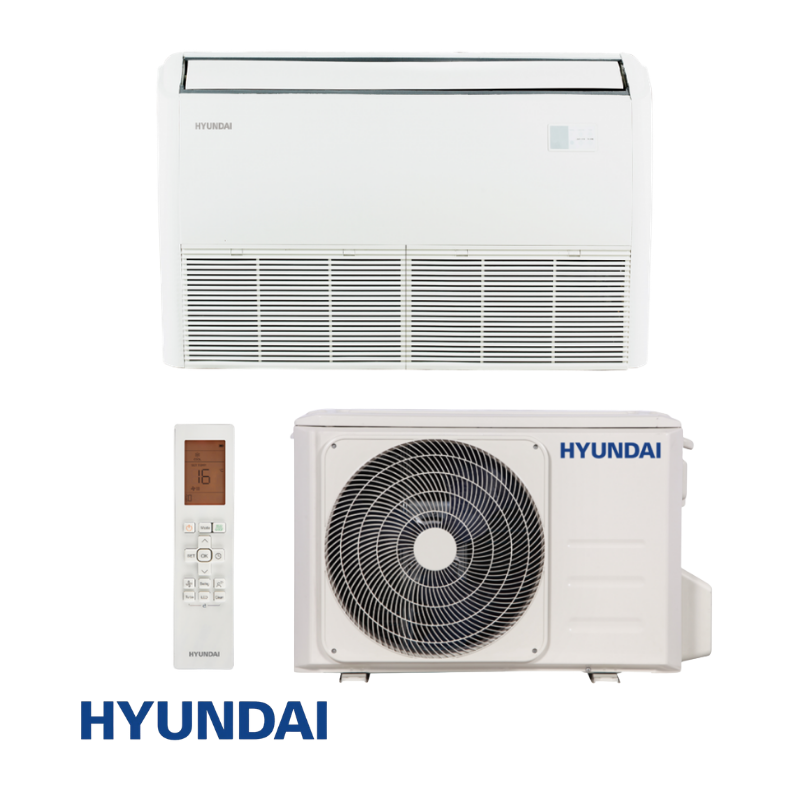

Подова конзола HYUNDAI HFAU-12HRFNX / HOX230-12HFN8-Q
€861,84 EUR
| Model | HFAU-12HRFNX/HOX230-12HFN8-Q | ||
|---|---|---|---|
| Average | Pdesignc | kW | 3,5 |
| SEER | W/W | 7,3 | |
| Energy Efficiency Class | A++ | ||
| Pdesignh | kW | 2,6 | |
| SCOP | W/W | 4,0 | |
| Energy Efficiency Class | A+ | ||
| Tbiv | ℃ | -7 | |
| Warmer | Pdesignh | kW | 3,4 |
| SCOP | W/W | 5,5 | |
| Energy Efficiency Class | A+++ | ||
| Tbiv | ℃ | 2 | |
| Tol | ℃ | -15 | |
| Power supply (Indoor ) | V,Hz,Ph | 220-240V,1Ph，50Hz | |
| Power supply (Outdoor ) | V,Hz,Ph | 220-240V,1Ph，50Hz | |
| Cooling | Capacity | Btu/h | 12000（2600~14500) |
| Capacity | kW | 3.52(0.76~4.25) | |
| Input | W | 1000（170~1350) | |
| Current | A | 4.52（1.4~5.9) | |
| Heating | Capacity | Btu/h | 13000（1550~16000) |
| Capacity | kW | 3.81(0.45~4.69) | |
| Input | W | 980（150~1300) | |
| current | A | 4.43（1.25~5.95) | |
| Indoor fan motor | Model | ZKFP-13-8-136 / ZKFP-13-8-104 | |
| Old Model | / | ||
| Qty | 2 | ||
| Input | W | 21*2 | |
| Capacitor | uF | / | |
| Speed(Hi/Mi/Lo) | r/min | 992/884/776 | |
| Indoor coil | a.Number of rows | 2 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | |
| c.Fin spacing | mm | 1,3 | |
| d.Fin type (code) | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ7,Inner groove tube | |
| f.Coil length x height x width | mm | 550x378x26.74 | |
| g.Number of circuits | 2 | ||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 650/580/490 | |
| Indoor sound pressure level(Hi/Mi/Lo/Si) | dB(A) | 37/34/27 | |
| Indoor sound power level (Hi) | dB(A) | 54 | |
| Outdoor sound pressure level | dB(A) | 54 | |
| Outdoor sound power level (Hi) | dB(A) | 62 | |

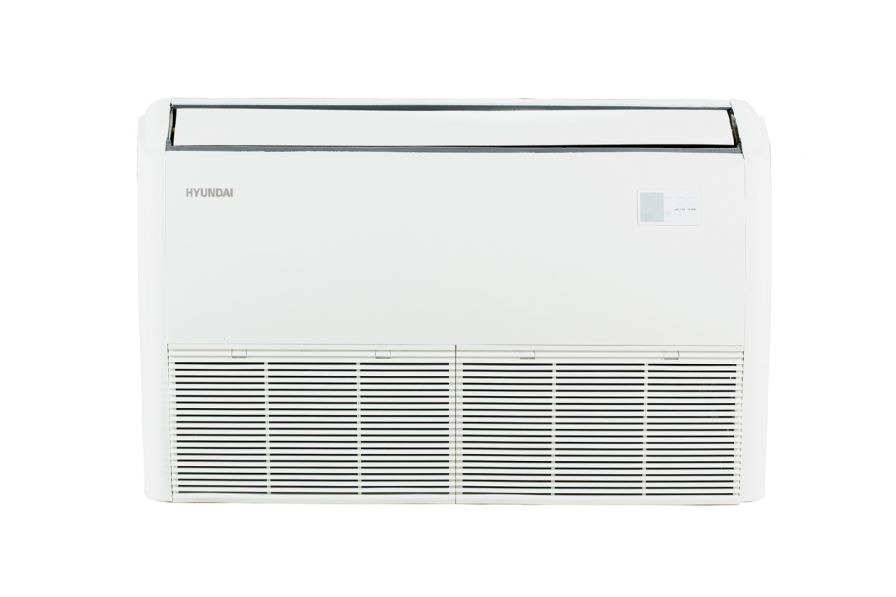

| Indoor unit | Dimension(W*D*H) | mm | 794x206x621 |
| Packing (W*D*H) | mm | 865x280x719 | |
| Net/Gross weight | Kg | 14.9/18.8 | |
| Design pressure | MPa | 4.3/1.7 | |
| Drainage water pipe dia. | mm | ODΦ16mm | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | 6.35mm(1/4in)/9.52mm(3/8in) |

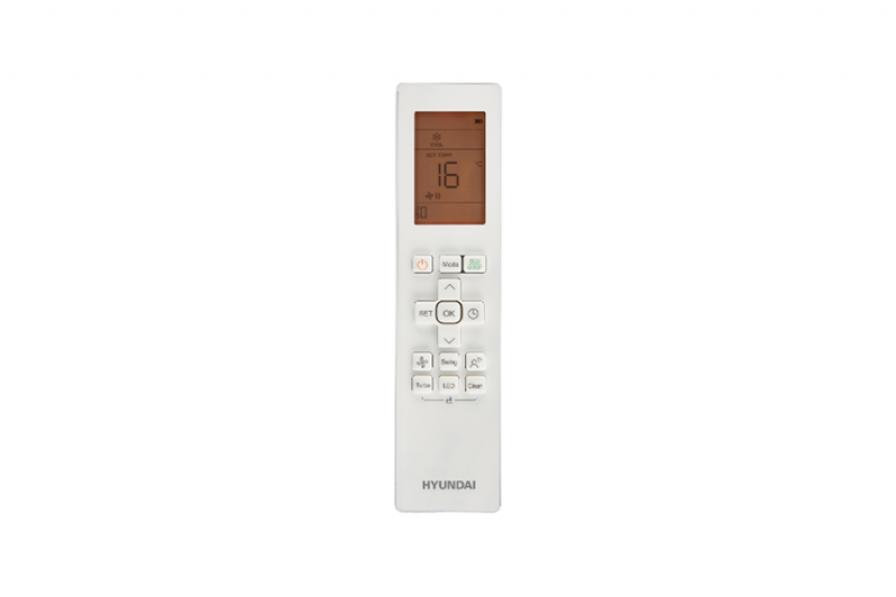

| Controller | Remote Control | ||
| Operation temperature | ℃ | 16~30 | |
| Room temperature | Cooling | ℃ | 16~32 |
| Heating | ℃ | 0~30 | |
| Qty’per 20’ /40’ /40'HQ | 168/344/390 | ||
